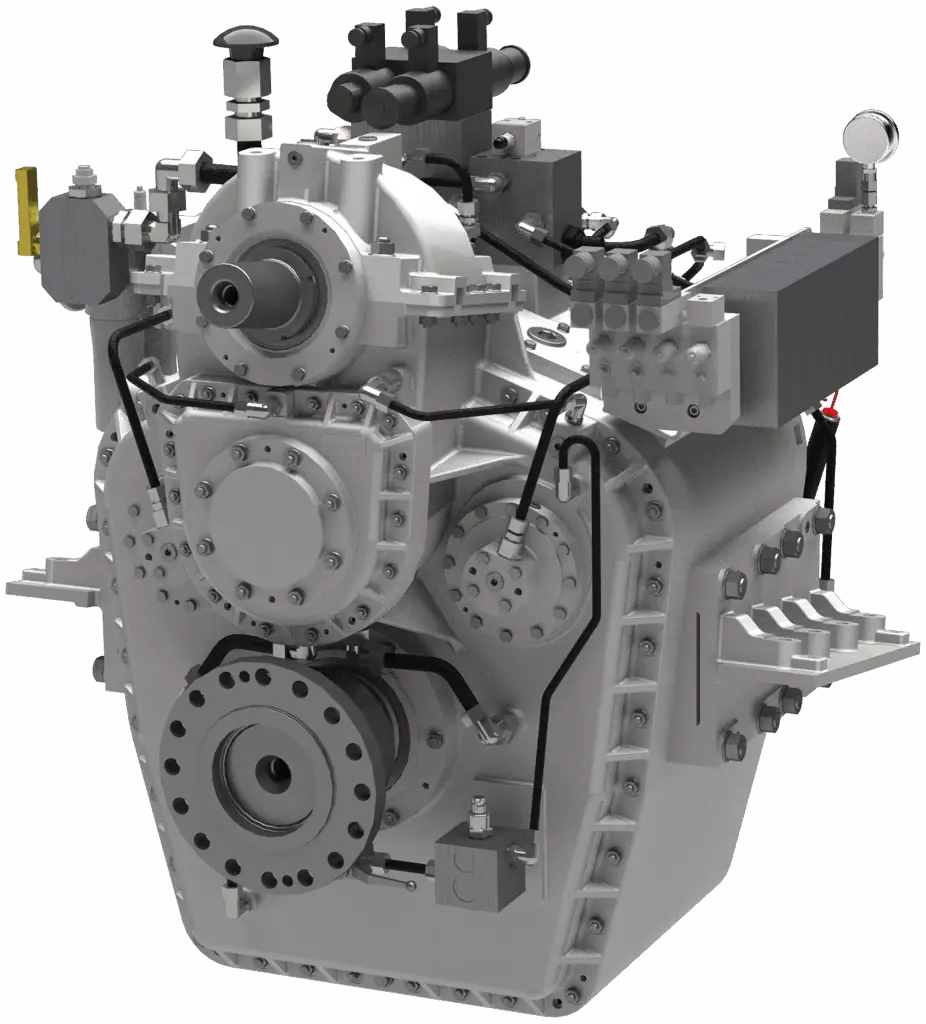

REINTJES gearboxes of the WVS/WLS, WVSA, ZWVS, and VLJ series have been specially designed for fast vessels with high operating demands. Gearboxes of these series have a compact, low-weight design, as well as optimal running characteristics and options. These factors make the hydraulically operated gearboxes the ideal propulsion unit, whether for fixed pitch propellers, controllable pitch propellers, or waterjets. These gearboxes were developed for use in fast naval craft, ferries, yachts, patrol vessels, and other vessels with comparably high demands.

WVS

Reverse-reduction gearbox with internal hydraulic multi-disc clutches, for use with a fixed-pitch propeller.Light-weight reverse-reduction gearbox with internal hydraulic multi-disc clutches, for use with a fixed-pitch propeller or waterjet

WLS

Light-weight reduction gearbox with internal hydraulic multi-disc clutch, for use with a controllable-pitch propeller.

WVS/WLS 234/1 – 430/1
350 – 1,400kW
WVS/WLS 730/1 – 2240
900 – 5,000kW

WVSA

Down angle, light-weight, reverse-reduction gearbox with internal hydraulic multi-disc clutches, for use with a fixed-pitch propeller.

down angle gearbox
WVSA 240-1540
500 – 4,900kW

ZWVS

Two-speed, light-weight, reverse-reduction gearbox with internal hydraulic multi-disc clutches, for use with a fixed-pitch propeller.

VLJ

Light-weight reduction gearbox with internal hydraulic multi-disc clutch(es), for use with a waterjet.

ZWVS 440 – 930
350 – 3,082kW
VLJ 430 – 7541
500 – 13,200kW
