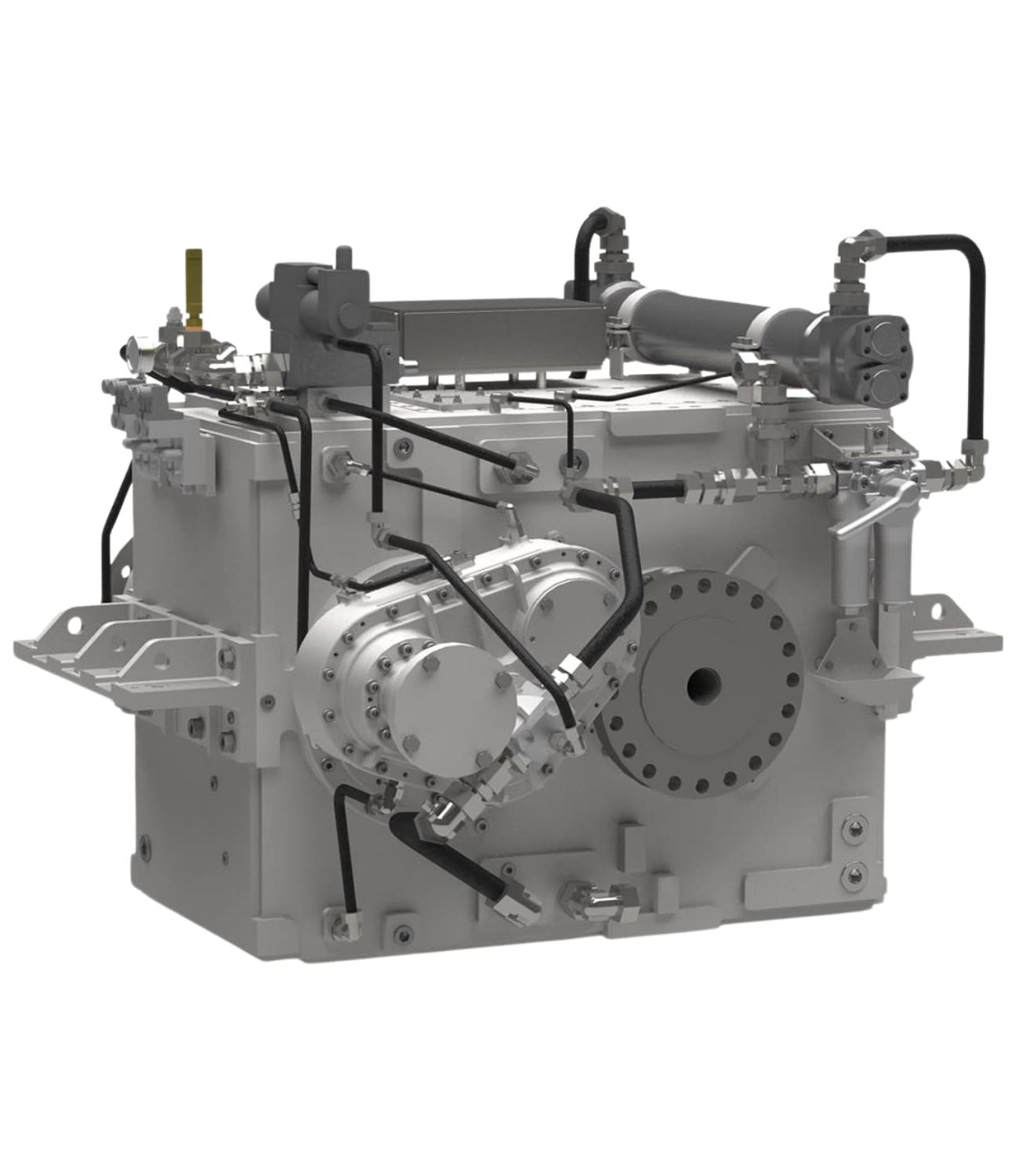

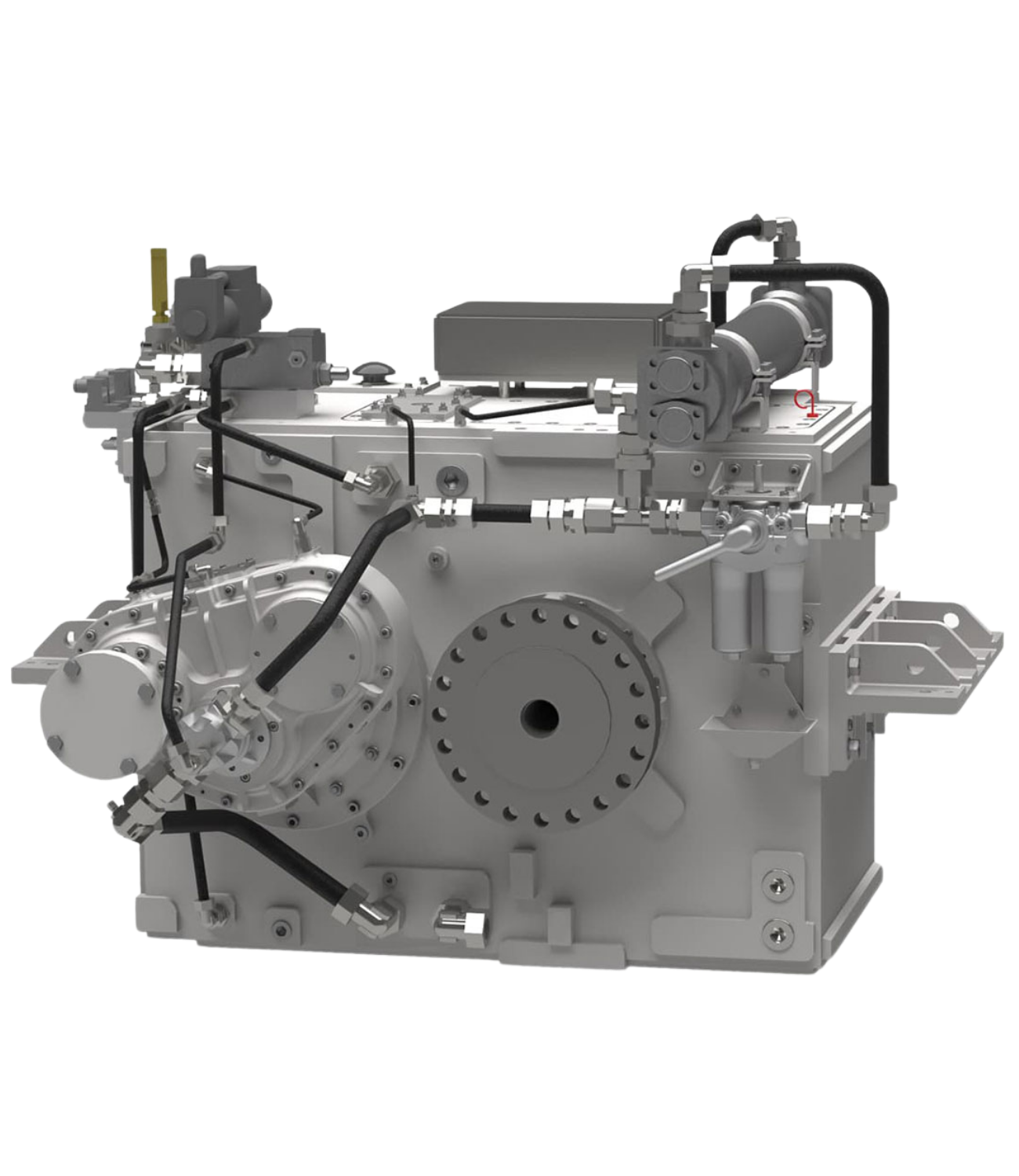

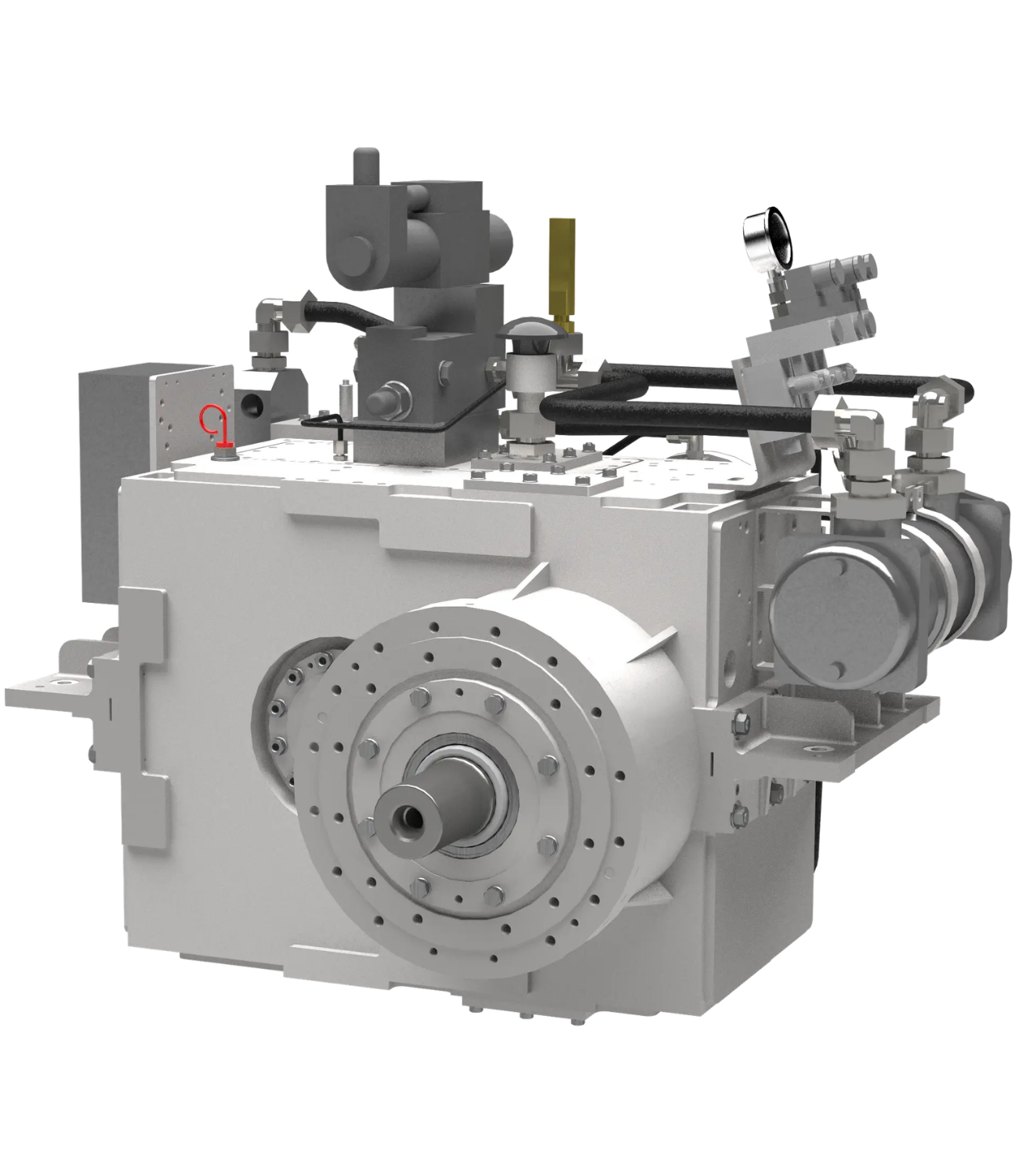

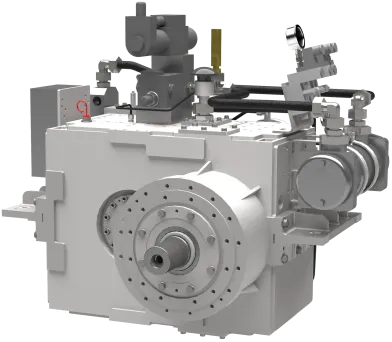

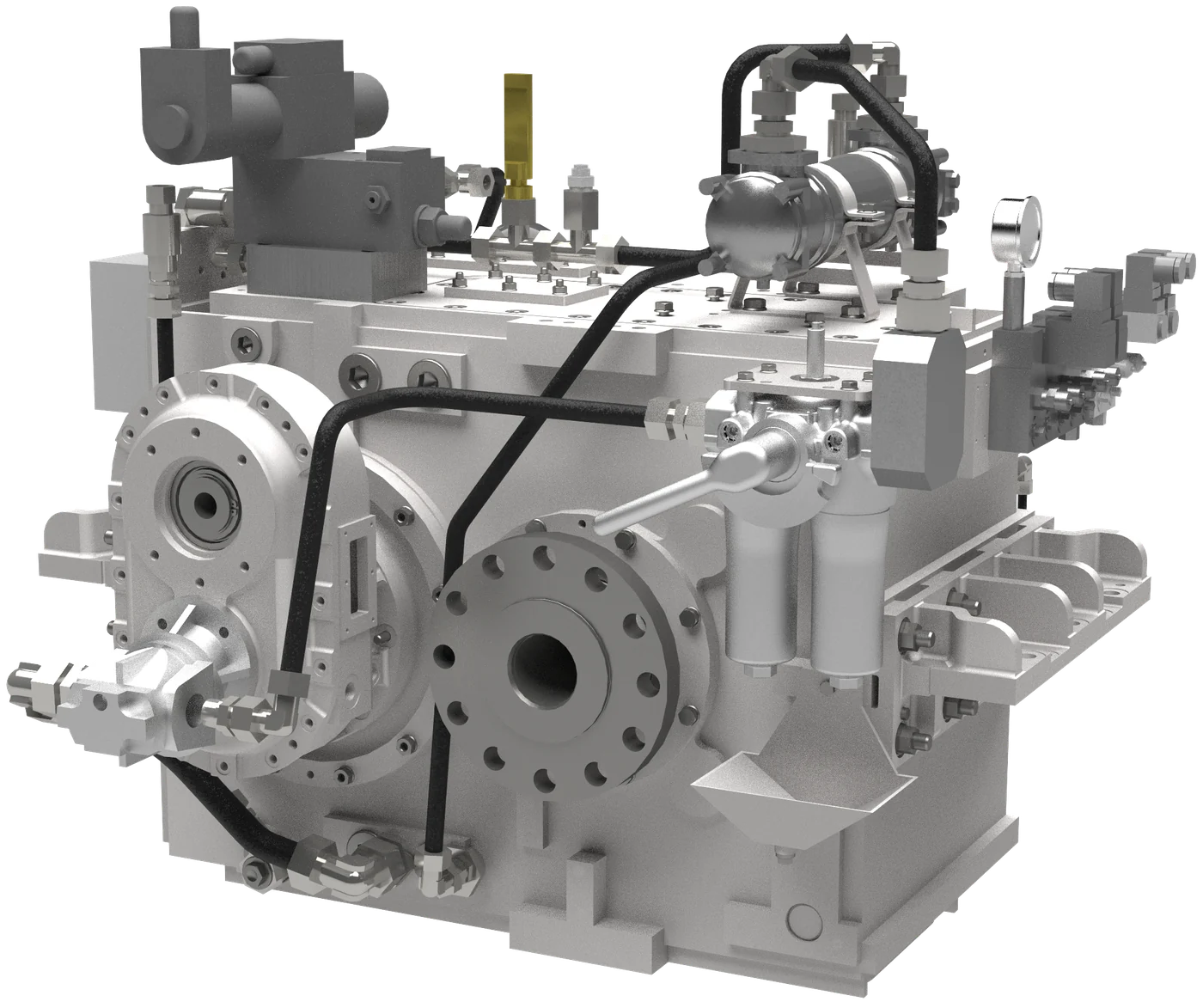

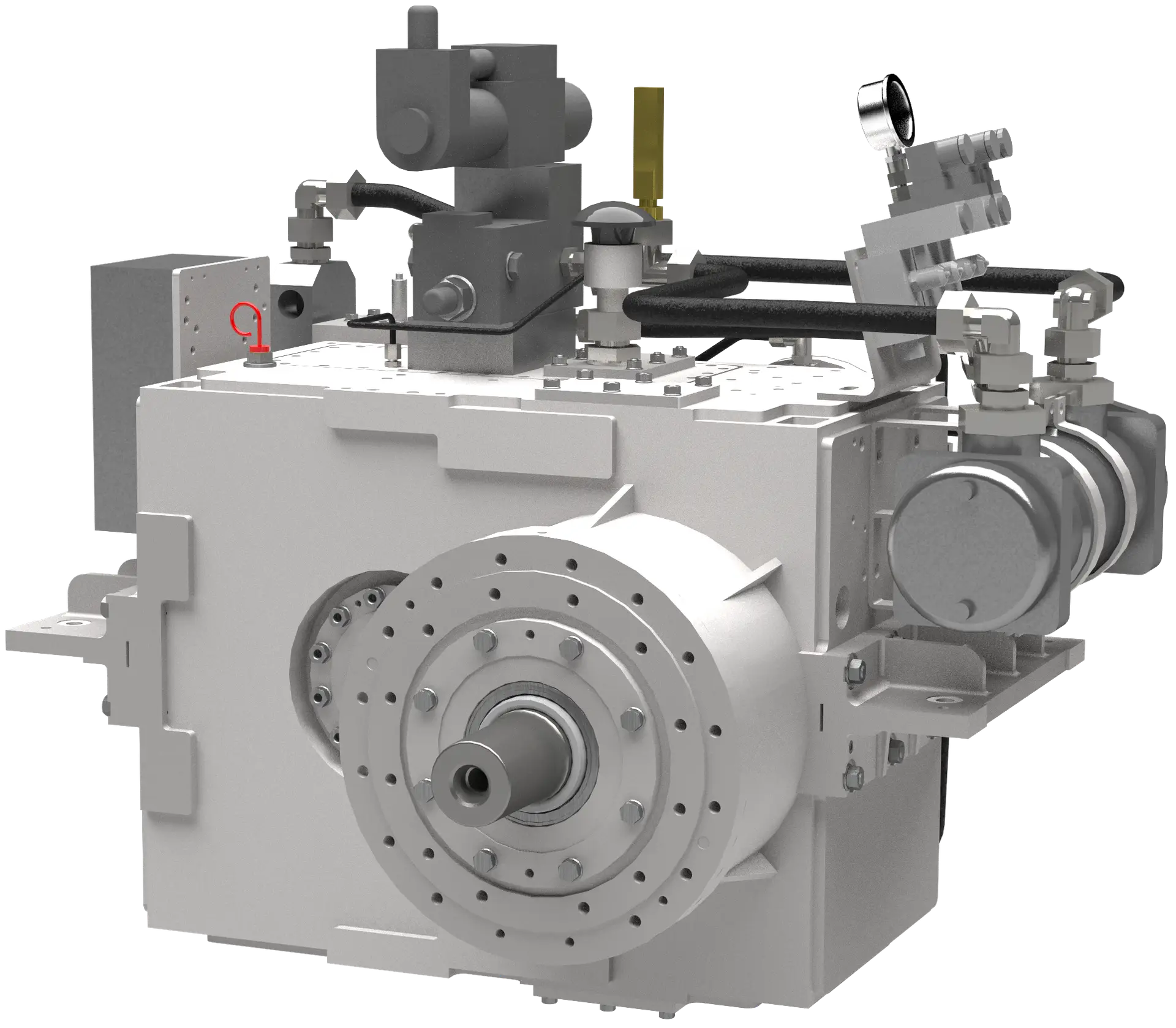

VLJ Series
430 – 7541 | 500 – 13,200 kW
Offset reduction gearboxes with an integrated hydraulic clutch, purpose-built for waterjet propulsion in fast ferries and high-performance craft — weight-optimized, compact, and quiet, in both vertical and horizontal layouts.
Engineered for Waterjet Propulsion
With more than 30 years of fast-ferry waterjet experience, the VLJ series pairs an integrated hydraulic clutch with a weight-optimized offset design — available in both vertical and horizontal layouts to suit any installation.
High Power-to-Weight Ratio
A weight-optimized design delivers maximum power for minimum mass, from 500 kW up to 13,200 kW.
Built for Waterjets
Purpose-designed reduction gears for water-jet propulsion, available vertically or horizontally offset.
Smooth Engagement
An integrated hydraulic clutch with adapted pressure increase gives smooth, controlled engagement.
Low Operating Noise
Helical, tooth-flank-ground gears and compact dimensions keep onboard noise low for ferry comfort.
Don't See What You're Looking For?
We specialize in fitting propulsion equipment to your project
Contact Our Sales Team TodayDuty Cycles
Medium Duty
Light Duty
Pleasure Duty
Continuous Duty
Specifications
VLJ Waterjet Reduction Gearbox

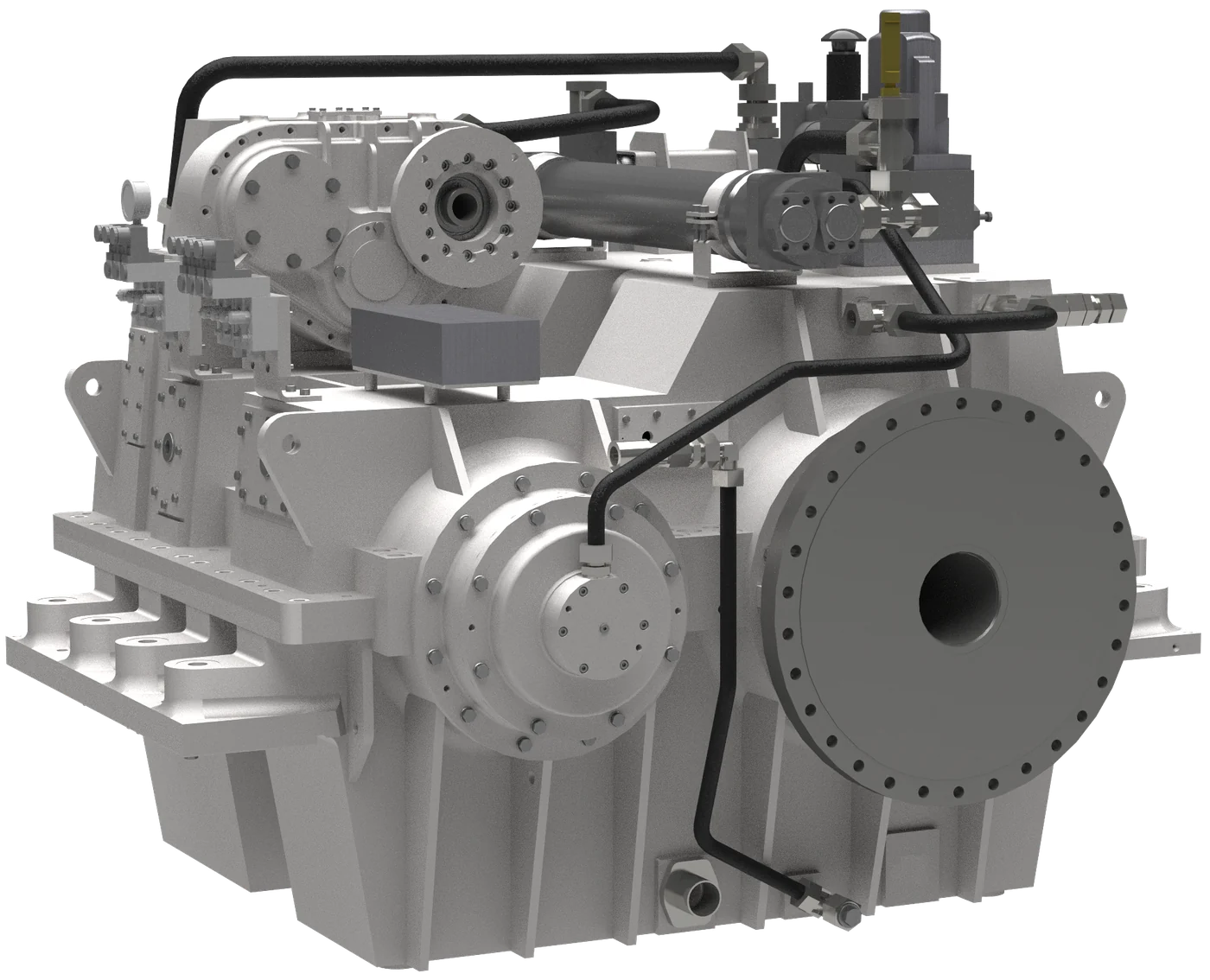

kW/rpm values are listed for each reduction ratio per the REINTJES Product Guide 2026. VLJ 430–2230 use Medium, Light and Pleasure duty (lighter duty cycles permit higher ratings); VLJ 4431–7541 are rated for Continuous duty. Main dimensions (mm) are the horizontally offset design from the brochure; a vertically offset layout is also available. VLJ 1540 dimensions are on request and VLJ 4431–7541 are configured to customer requirements. Bold ratios are standard; dimensions and dry weights are not strictly binding (subject to change). For gearbox selection, contact Karl Senner.
Versions
- Aluminium alloy housing
- Cast brackets or prepared for mounting brackets (VLJ 430–2230)
- Vertical or horizontal execution
- Helical spur gears, case-hardened and tooth-flank ground
- Built-in, hydraulically operated disc clutches (steel / sinter friction surface)
- Smooth engagement via adapted pressure increase during shifting
- Integrated oil sump with common operating & lube oil circuit
- Oil pump and oil filter accessible from the outside
- Built-on heat exchanger, seawater-resistant
- Maximum cooling water inlet temperature 32°C (90°F)
- Supervision instruments for pressure and temperature
- Built-on control valve, electrically or pneumatically operated
- Input: free shaft with 1:30 taper
- Output: forged-on flange
- Synthetic resin varnish in all RAL colors
