REINTJES Gearbox

WVS Series

WVS / WLS 234/1 – 430/1  |  350 – 1,400 kW

Weight-optimized reverse-reduction gearboxes engineered for fast vessels — compact dimensions, finely tuned shifting, and low operating noise for planing and semi-planing applications.

Request a Quote View Specs ↓
REINTJES WVS/WLS 234/1-430/1 Marine Gearbox

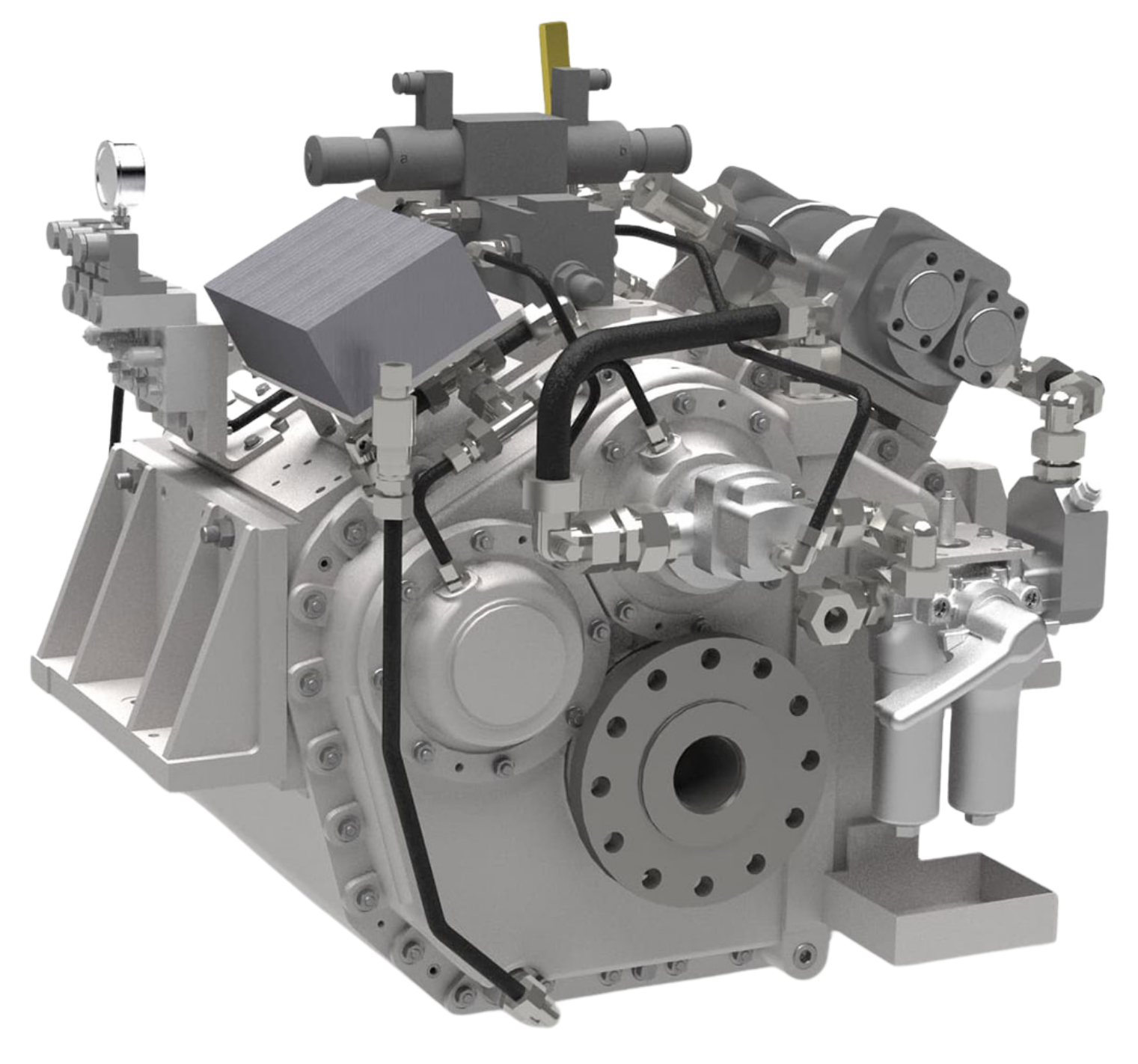

REINTJES WVS/WLS 234/1-430/1 Gearbox view 2
Key Advantages

Lightweight, Fast-Shifting, and Quiet

Aluminium-housed and weight-optimized, the WVS series is built for fast-vessel propulsion where every kilogram and decibel counts — from patrol boats to luxury yachts.

High Power-to-Weight Ratio

Aluminium alloy housing and case-hardened gears deliver maximum power for minimum weight, ideal for performance vessels.

Compact Dimensions

A tight footprint fits constrained engine rooms typical of fast craft, planing vessels, and yacht installations.

Finely Tuned Shifting

The "Fast Clutch" system on WVS 234–930 provides smooth, controlled engagement under demanding maneuvering.

Low Operating Noise

Helical, tooth-flank-ground gears and resilient mounting options keep onboard noise levels low for crew and guest comfort.

Don't See What You're Looking For?

We specialize in fitting propulsion equipment to your project

Contact Our Sales Team Today
Operating Profiles

Duty Cycles

Select the right operating profile for your vessel's application and usage pattern.

M

Medium Duty

Operation Intermittent operation with some variations in engine speed and power
Engine Hours 4,000 hours/year
Hull Forms Planing, semi-planing, catamaran
Applications Private, charter, commercial, navy & governmental vessels
L

Light Duty

Operation Intermittent operation with large variations in engine speed and power
Engine Hours 2,500 hours/year
Hull Forms Planing, semi-planing, displacement
Applications Private, charter, sport & leisure craft, navy & governmental vessels
P

Pleasure Duty

Operation Intermittent operation with very large variations in engine speed and power
Engine Hours 500 hours/year
Hull Forms Planing, semi-planing
Applications Private, noncommercial, noncharter, sport & leisure craft
Technical Data

Specifications

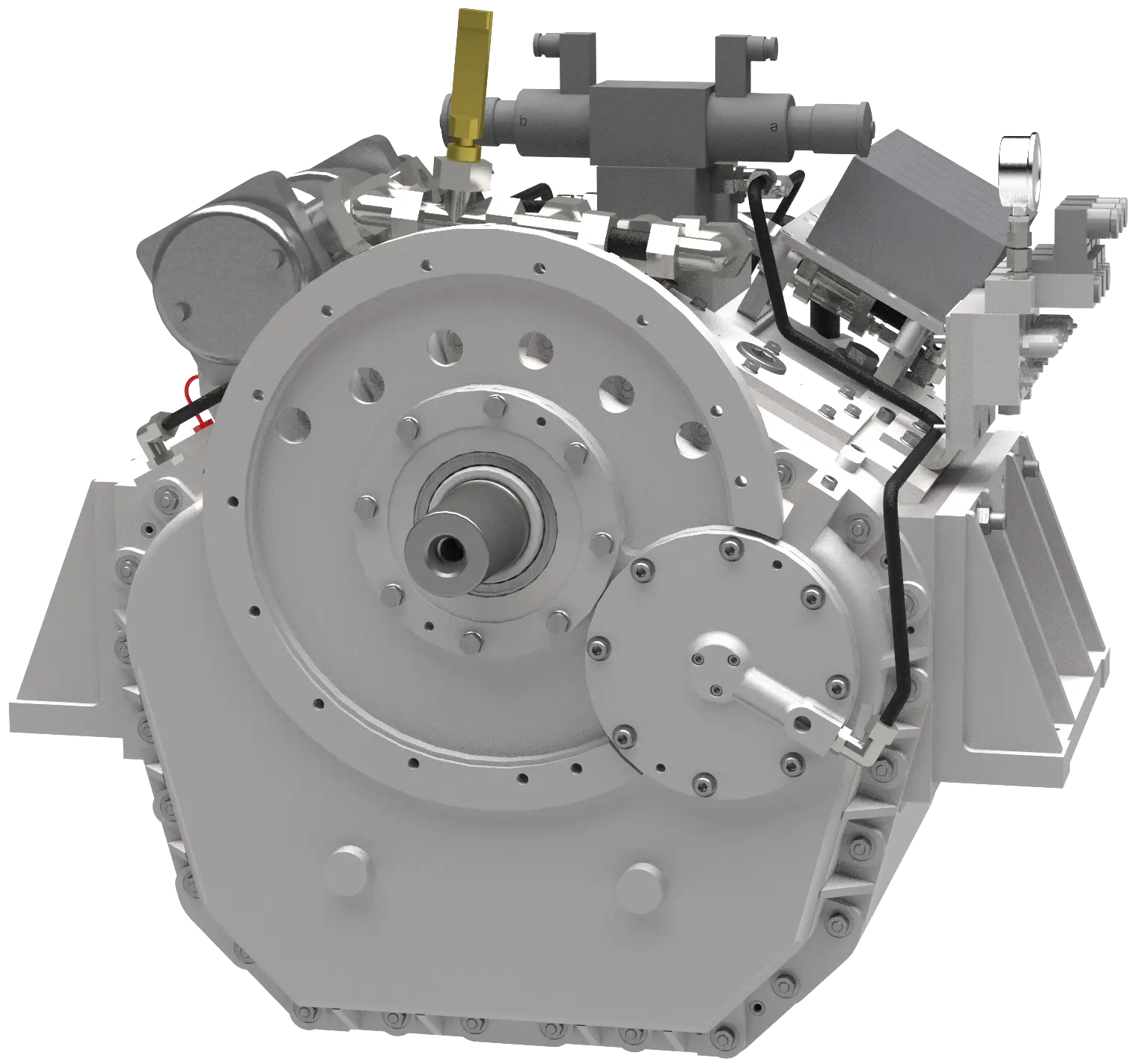

REINTJES WVS/WLS 234/1-430/1 reverse-reduction gearbox
REINTJES WVS/WLS 234/1-430/1 gearbox view 2

WVS Reverse-Reduction Gearbox

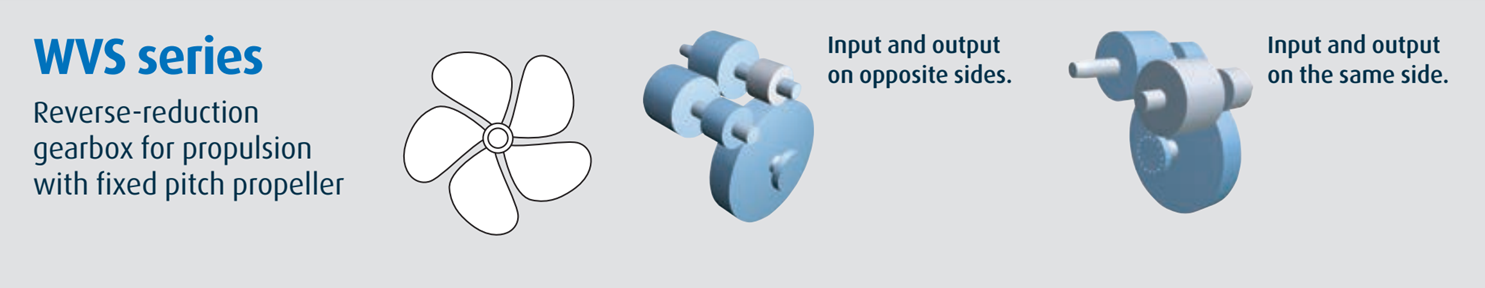

Use the selector above to switch views. Power Ratings show kW/rpm for each reduction ratio per the REINTJES Product Guide 2026 across Medium, Light and Pleasure duty (lighter duty cycles permit higher ratings). Main Dimensions give all gearbox dimensions in millimetres for the standard (input/output on opposite sides) and U-Drive (same side) configurations; weight columns list the WVS and the WLS counter-rotation and identical-rotation versions. Dimensions and dry weights are for the standard design and are not strictly binding (subject to change). Bold ratios are standard; additional ratios, custom ratios and input speed variations are available on request.

Equipment

Versions

  • Aluminium alloy housing
  • Helical gears, case-hardened and tooth-flank ground
  • Built-in, hydraulically actuated disc clutches
  • Roller bearings with integrated thrust bearing
  • "Fast Clutch" system (WVS 234 – 930)
  • Full power transmission in both output directions
  • Integrated oil sump with common oil circuit
  • Built-on heat exchanger, seawater-resistant
  • Maximum cooling water inlet temperature 32°C (90°F)
  • Connection for remote pressure / temperature supervision
  • Built-on control valve with electric operation
  • Input: free shaft with 1:30 cone
  • Output: forged-on flange
  • Coated with synthetic resin varnish, RAL 7001 silver-grey
  • Rigid mounting
  • SAE bell housing
  • Output-side counterflange
  • Input-side engine flange
  • Flexible coupling
  • Classification society approval
  • Supervision instruments for unmanned engine rooms
  • Heat exchanger for higher cooling water inlet temperatures
  • Trolling propulsion system (ADS)
  • Resilient mounting options
  • Special gear reduction ratios, acoustically optimized
  • Electric stand-by pump connection
  • Trailing pump (mechanical or electric)
  • Integrated shaft brake
  • Auxiliary drive (PTO / PTI) with SAE pads
  • Yacht premium design finish
  • Two-speed gearbox (ZWVS 440 – 930)
  • U-drive configuration
  • Upside-down shaft arrangement
  • Synthetic resin varnish in all RAL colors

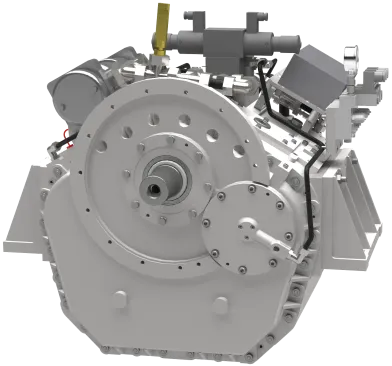

WVS/WLS 234/1 – 430/1
WVS/WLS 234/1 – 430/1 gearbox view
WVS/WLS 234/1 – 430/1 gearbox view 2
Resources

Downloads

WVS 234/1 – 430/1 Brochure

WVS/WLS 234/1 - 430/1 brochure with ratings, dimensions, weights, standard equipment, and available options for fast vessels (350 - 1,400 kW).

Download PDF

REINTJES Product Guide 2026

Complete REINTJES marine gearbox product guide covering series families, marine applications, and broader selection references.

Download PDF
