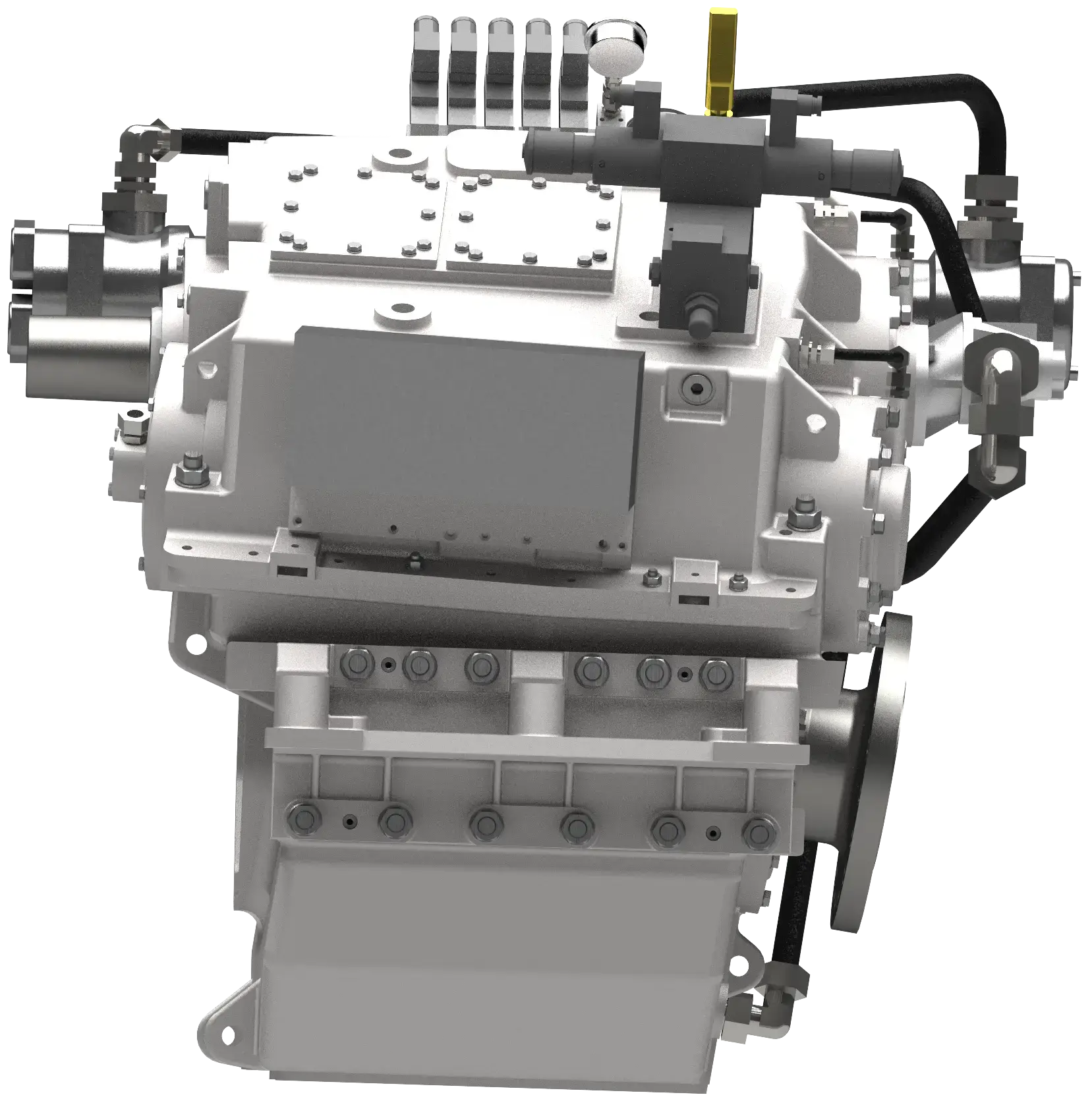

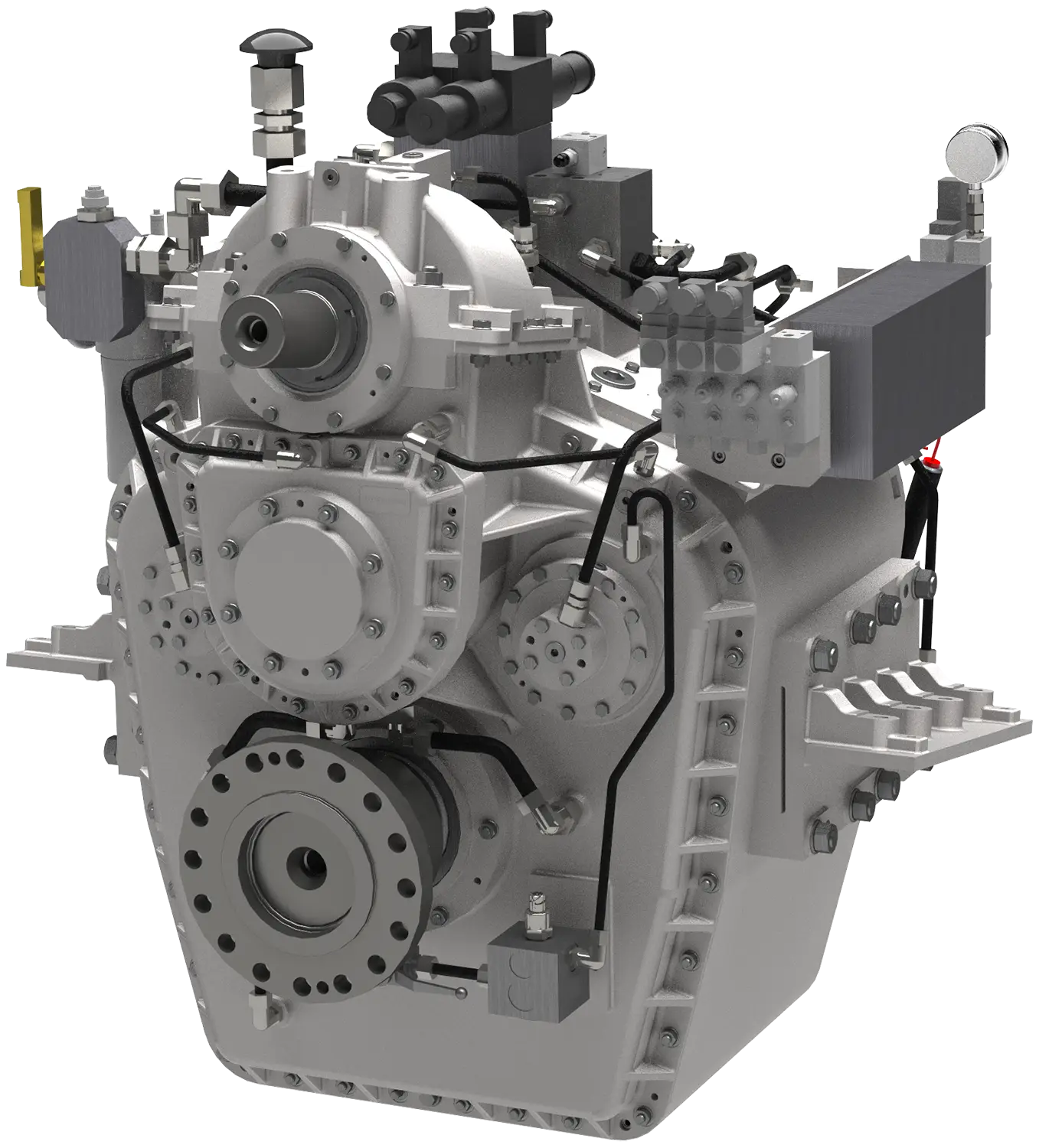

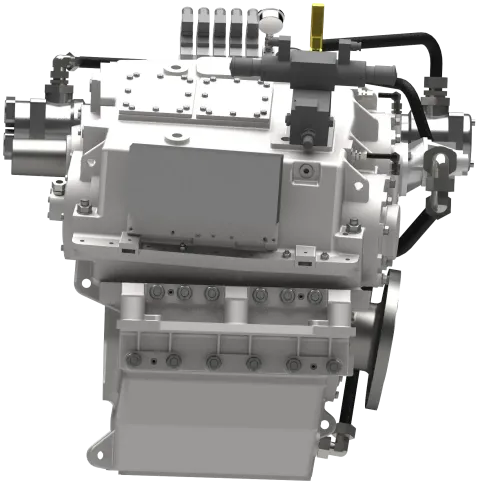

WVSA Series
240 – 1540 | 500 – 4,900 kW
Down-angle reverse-reduction gearboxes for fast vessels. Beveloid gears angle the output shaft 8–10° downward, lowering the power train and shrinking the engine room — with the high power-to-weight ratio and quiet running of the WVS series.
Lower the Power Train, Shrink the Engine Room
Built on the proven WVS platform, the WVSA down-angle gearbox angles the output shaft 8–10° downward with beveloid gears — freeing designers to install the engine horizontally while reducing overall engine room height for new builds.
High Power-to-Weight Ratio
A weight-optimised design delivers a power-speed ratio up to 2 kW/rpm, maximising output for minimum mass.
Space-Saving Down-Angle
The 8–10° down-angle lowers the power train and reduces engine-room height — crucial for new-build naval architecture.
Low Operating Noise
Optimal tooth-flank corrections, synchronised engagement, and resilient mounting absorb noise and vibration onboard.
Design Freedom
A wide reduction range of 1.5 to 4 and configurable shaft angles suit mega-yachts, patrol vessels, and crew boats alike.
Don't See What You're Looking For?
We specialize in fitting propulsion equipment to your project
Contact Our Sales Team TodayDuty Cycles
Select the right operating profile for your vessel's application and usage pattern.
Medium Duty
Light Duty
Pleasure Duty
Specifications
WVSA Down-Angle Reduction Gearbox
WVSA down-angle gearboxes deliver a power-speed ratio of up to 2 kW/rpmwith a reduction range of 1.5 to 4and an 8– 10° beveloid down-angle. Main dimensions (mm) are from the REINTJES WVSA 240– 1540 brochure for the 740, 940 and 1540 sizes — WVSA 240, 340 and 440 are available on request. Dimensions and dry weights are for the standard design and are not strictly binding (subject to change). Per-ratio ratings are application-specific; contact Karl Senner for a binding gearbox selection.
Versions
- Aluminium alloy housing
- Shaft angle of 8° or 10° (down-angle)
- Rigid mounting
- Beveloid gears, helically toothed and case-hardened
- Built-in, hydraulically operated disc clutches (steel / sinter friction)
- Smooth engagement via adapted pressure increase during shifting
- Full power transmission & equal reduction in identical and counter rotation
- Integrated oil sump with common operating & lube oil circuit
- Oil pump and oil filter accessible from the outside
- Built-on heat exchanger, seawater-resistant
- Maximum cooling water inlet temperature 38°C (100°F)
- Fitted pressure gauge + connection for remote pressure / temperature supervision
- Built-on control valve with electric operation
- Input: free shaft with 1:30 taper
- Output: forged-on flange
- Coated with synthetic resin varnish, RAL 7001 silver-grey
Where These Gearboxes Go to Work
Patrol craft, pilot boats, and fast motor yachts demand high power-to-weight and quiet running. REINTJES fast-vessel gearboxes deliver both — in compact configurations that save space in the engine room.
Downloads
WVSA 240 – 1540 Brochure
Down-angle WVSA 240 - 1540 brochure with dimensions, weights, standard equipment, and available options for fast vessels (500 - 4,900 kW).
Download PDFREINTJES Product Guide 2026
Complete REINTJES marine gearbox product guide covering series families, marine applications, and broader selection references.
