Naval & Government Vessels
250 – 30,000 kW
The Army, Army Corps of Engineers, Department of Transportation, and other government agencies require proven and reliable power train solutions to operate effectively, even under extreme environment conditions. REINTJES gearboxes deliver mission-ready performance with shock-rated, robust designs.
Mission-Ready, Built to Class
REINTJES naval and governmental gearboxes are engineered for the most demanding service — shock-resistant, robust reliability, and certified to the major classification societies, from patrol craft to frigates and support vessels.
Shock-Resistant & Robust Reliability
Shock-rated execution, resilient mounting, watertight sealing and degaussing reduce acoustic and magnetic signatures.
Certified to Class
Supervision and approval to all major classification societies (IACS), with documentation to international IETM standards.
Proven Disc-Clutch Drive
Built-in hydraulic disc clutches with smooth, adapted-pressure engagement and full power in both senses of rotation.
Customised for the Mission
Steel, cast-iron or aluminium housings, double-helical toothing, PTO/PTI, turn drive, shaft locking and more — tailored per project.
Specifying Propulsion for a Government Project?
Our application engineers support naval and government acquisition programs
Contact Our Sales Team TodayMission-Ready Propulsion
Shock-rated, low-signature gearboxes for patrol craft, frigates, OPVs, and government support vessels — engineered to meet classification society and naval specifications.
WVS
Reverse-reduction gearbox, horizontally offset configuration, for fast vessels.
View Series
SVAL
Reduction gearbox with slide bearings, for controllable-pitch propeller, horizontally offset configuration, with disc clutch.
View Series
WAF-LAF
Reverse-reduction gearbox, vertically offset configuration, version with flange.
View Series
DLG
Twin-input / single-output reduction gearbox with disc clutch, same height of the input shafts.
View SeriesPropulsion for Every Mission
Government fleets span everything from harbor tugs to high-speed patrol craft. Pick a vessel type to browse every REINTJES gearbox that serves it.
Browse by Housing Material
Fast-vessel gearboxes are built in weight-saving aluminum alloy; workboat gearboxes come in grey cast iron or fabricated steel for maximum strength.
Buy America Compliant
Karl Senner offers Buy America–compliant REINTJES gearboxes for federally funded programs — independently validated for FTA Buy America, the Build America, Buy America Act, and Defense Security Cooperation Agency guidelines.
Turn Drive
The turn drive allows turning the propeller shaft even when the main engine is standing still, e.g. for maintenance work.
- Operation with a control panel and with a remote control
- Current status can be monitored and visualised with the LOP

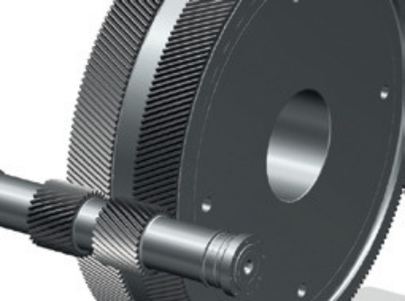

Double Helical Toothing
Oil Pre-Heater
The oil pre-heater heats up the oil to a temperature of >25 °C.
- Manual and automatic operation are both possible
- Current status can be monitored and visualised with the LOP

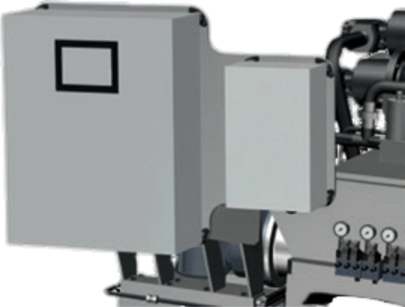

Local Operating Panel (LOP)
The LOP can be used for various purposes including:
- Control of the clutch(es)
- Control of electric oil pumps
- Monitoring alarms, operating conditions, pressure, speed and other values
- Operation of turn drive, shaft locking device and oil pre-heater
The LOP control cabinet comes with a TFT display with a customised menu structure.

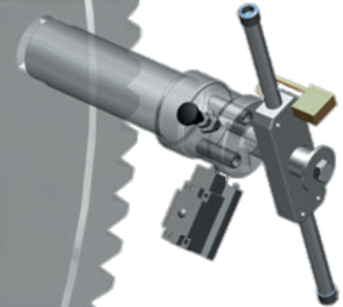

Shaft Locking Device
With the shaft locking device the propeller shaft can be mechanically locked and therefore be secured in its position.
- Spring-loaded
- Easy-to-operate
- Current status can be monitored and visualised with the LOP

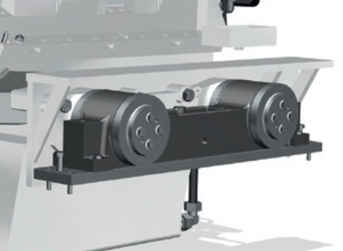

Resilient Mounting of Gearbox and Accessories
Proven Across the Fleet
REINTJES naval and government gearboxes bring shock-rated, robust reliability to defense and agency fleets — from patrol craft and corvettes to Coast Guard lifeboats.
Downloads
Naval & Governmental Brochure
REINTJES gearboxes for naval and governmental applications (250 - 30,000 kW) — series overview, optional equipment, and standard scope of supply.
Download PDFREINTJES Product Guide 2026
Complete REINTJES marine gearbox product guide covering series families, marine applications, and broader selection references.
Download PDFNeed Help Selecting the Right Gearbox?
Our application engineers are ready to assist with gearbox selection, propulsion system integration, and complete project support.
