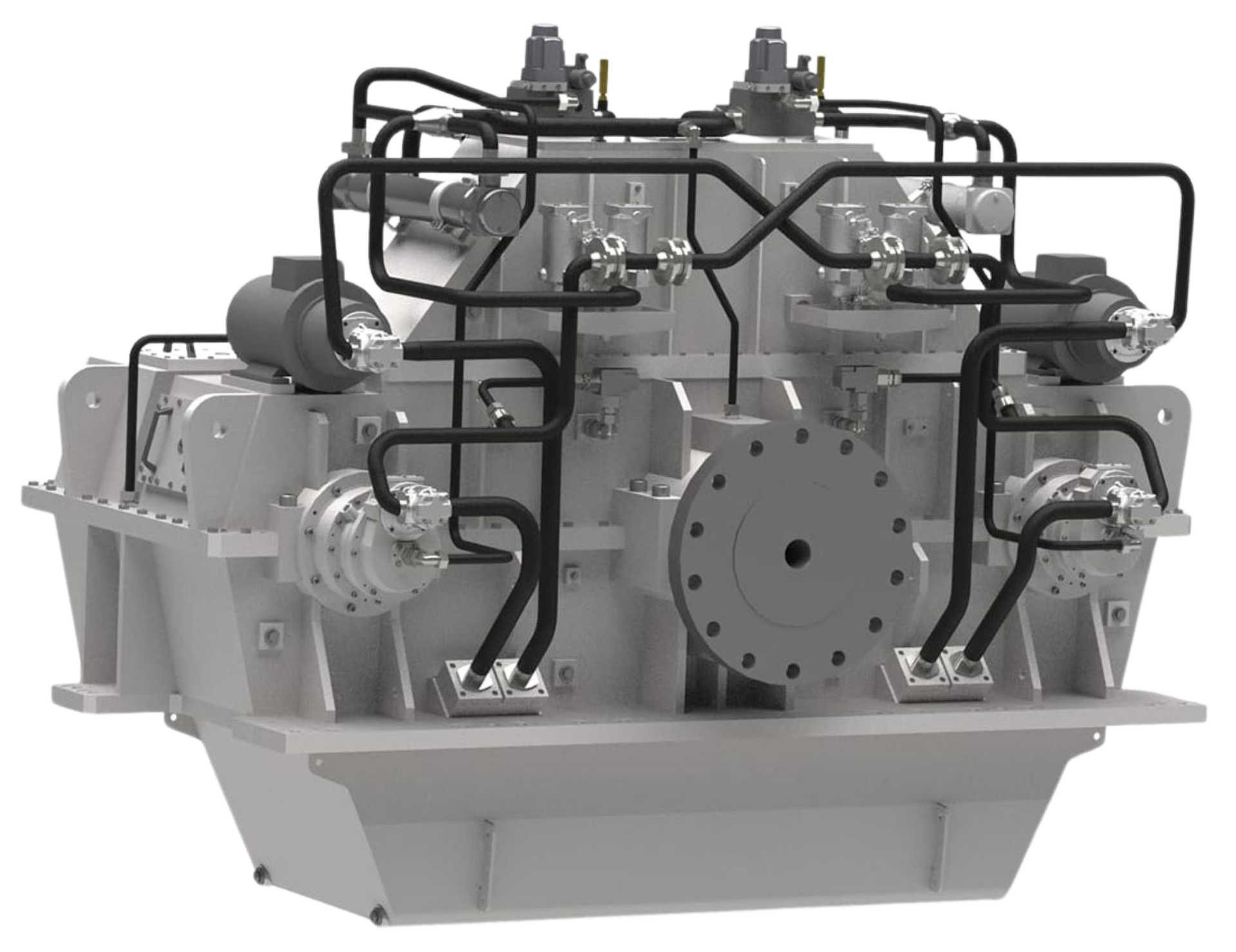

DLG Series
1113 – 110131 | 1,400 – 30,000 kW
Twin-input / single-output reduction gearboxes built for the largest commercial workboats, dredgers, and government support vessels — designed for high-torque dual-engine propulsion with integrated disc clutches.
Engineered for High-Power Dual-Engine Propulsion
Backed by over 80 years of REINTJES marine gearbox experience, the DLG series combines twin engine inputs into a single propeller output — built for the most demanding workboat, dredger, and government support vessel applications.
Twin-Input Configuration
Two engine inputs combined into a single output shaft, with identical input shaft heights for symmetrical engine room layouts.
High Torque Capability
Engineered to handle up to 30,000 kW of combined input power with integrated propeller thrust bearing and heavy-duty disc clutches.
Independent Clutch Control
Hydraulically operated disc clutches on each input allow single- or dual-engine operation, supporting redundancy and reduced-power running.
Continuous-Duty Reliability
Fabricated steel housing, case-hardened helical gears, and pressure-fed lubrication built for unlimited-hours commercial duty.
Need a Twin-Input Drivetrain?
Our application engineers help configure DLG installations for ocean tugs, dredgers, and naval support vessels.
Contact Our Sales Team TodayContinuous Duty
The DLG series is rated exclusively for continuous-duty propulsion in the largest commercial and government support vessels.
Continuous Duty
Other duty cycles for special applications are available upon request.
Specifications
DLG / DUG Twin-Input Reduction Gearbox
| Model | Weight Dry | kW/rpm |
|---|
kW/rpm is quoted for size orientation only — twin-input / single-output gearboxes are configured per project, so reduction ratios are application-specific. Contact Karl Senner for final selection. Total range: 1,400 – 30,000 kW. Weights are standard dry design; additional sizes and variations available on request.
Versions
- Twin-input / single-output configuration with identical input shaft heights
- Fabricated steel housing for high stiffness and strength
- Helical gears, case-hardened and tooth-flank ground
- Built-in hydraulically operated disc clutches with steel/sinter friction surfaces
- Integrated propeller thrust bearing
- Full power transmission in both output directions
- Built-on seawater-resistant heat exchanger
- Connection for remote pressure and temperature supervision
- Built-on control valve with electric operation
- Coated with synthetic resin varnish, RAL 7001 silver-grey

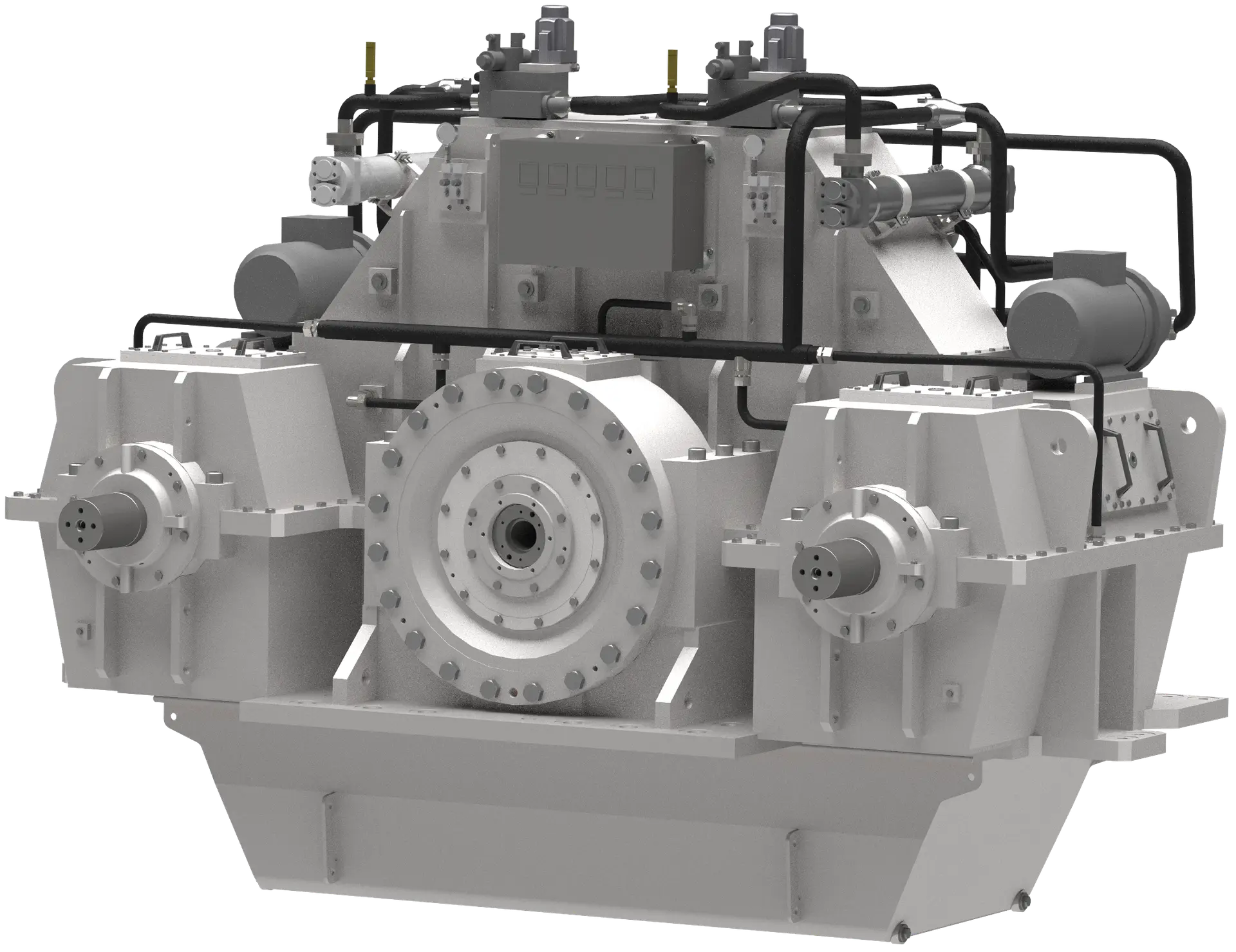

Where These Gearboxes Go to Work
From tugs and barges to the commercial fishing fleet, REINTJES gearboxes power the hardest-working vessels on the water — engineered for high thrust and continuous, heavy-duty service.
Downloads
REINTJES DLG Series Brochure
DLG 1113 - 110131 brochure with ratings, reduction ratios, weights, standard equipment, and available options for high-power twin-input applications.
Download PDFREINTJES Product Guide 2026
Complete REINTJES marine gearbox product guide covering series families and applications.
Download PDFNeed Help Selecting the Right Gearbox?
Our application engineers are ready to assist with gearbox selection, propulsion system integration, and complete project support.
