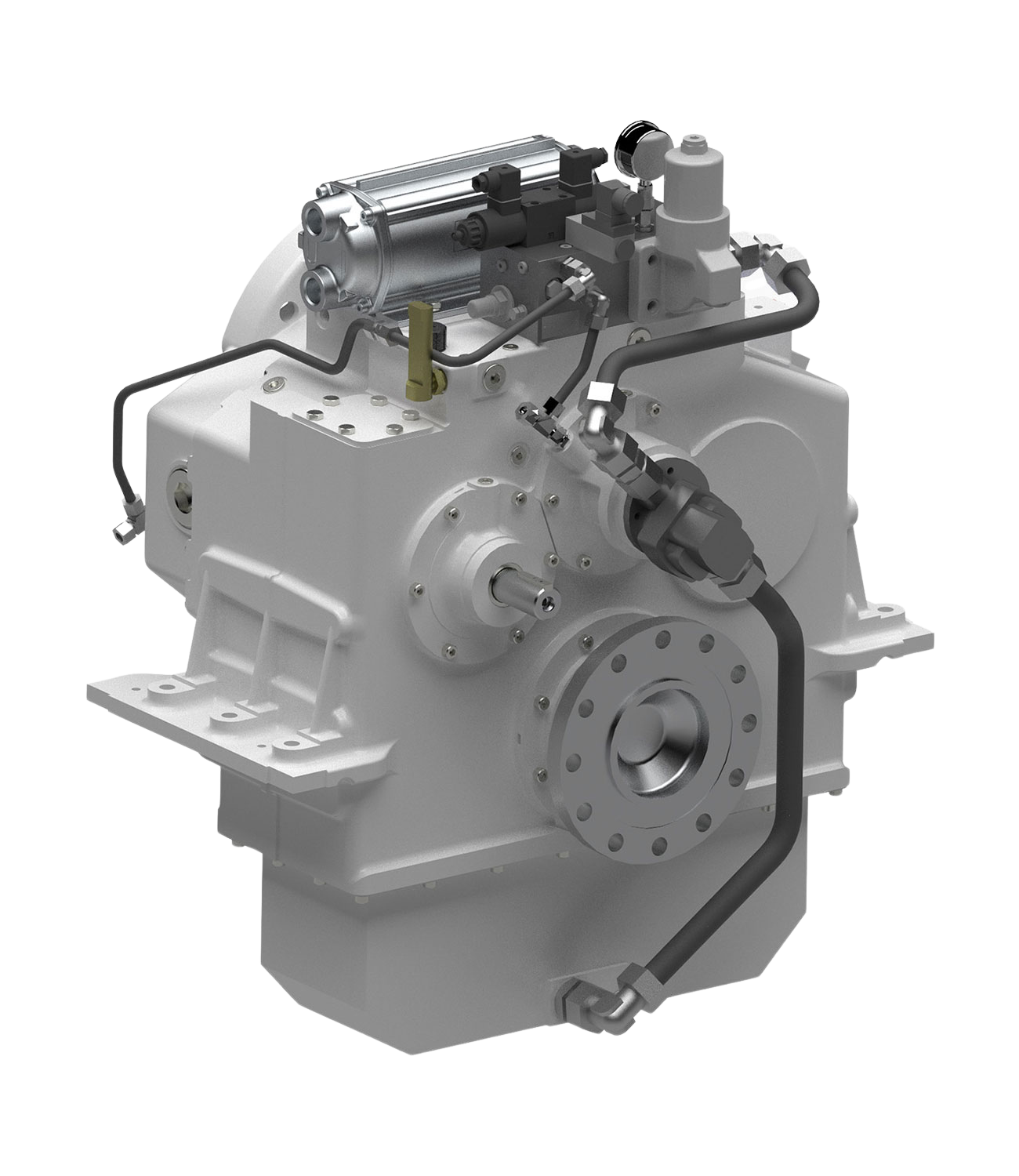

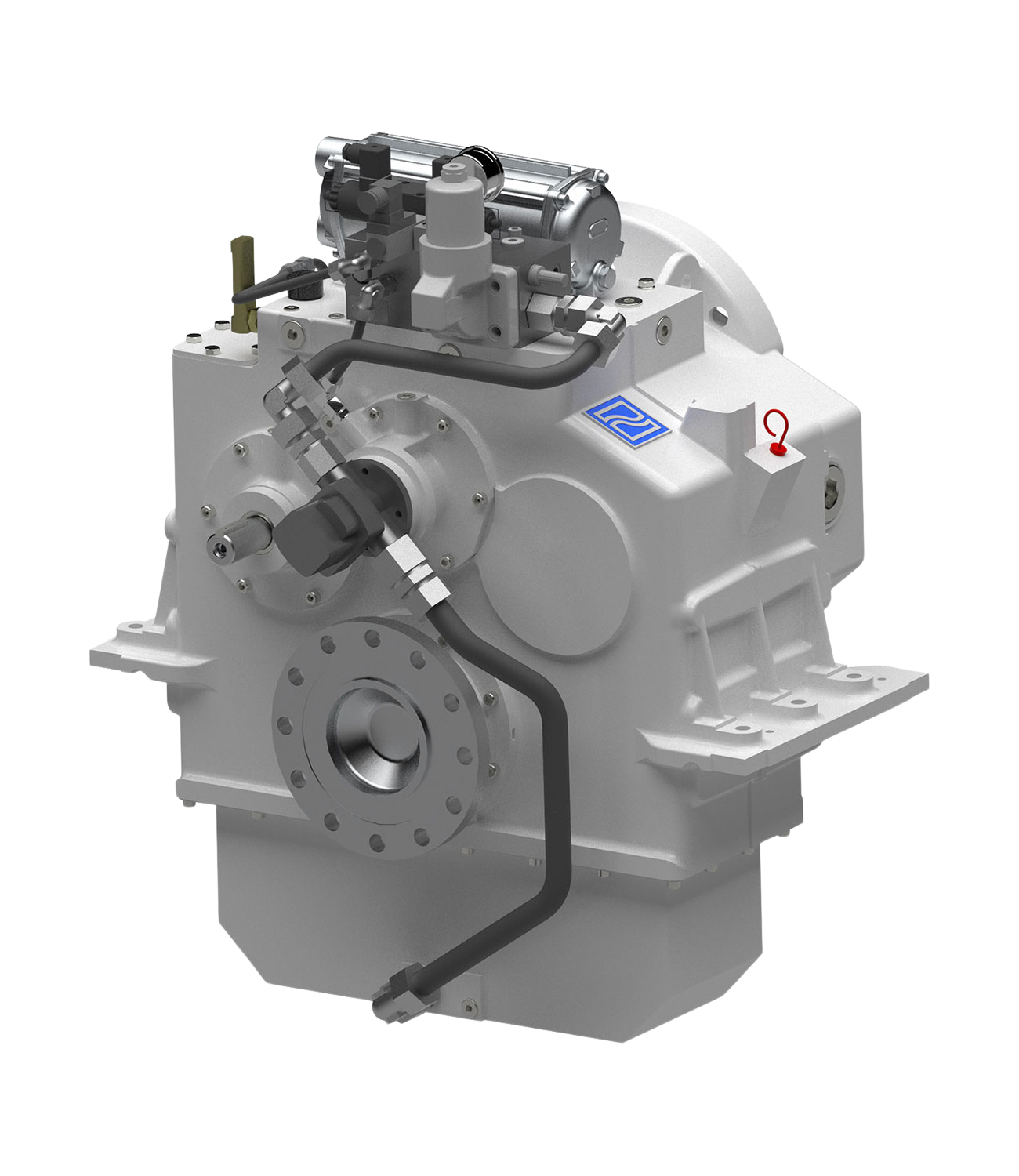

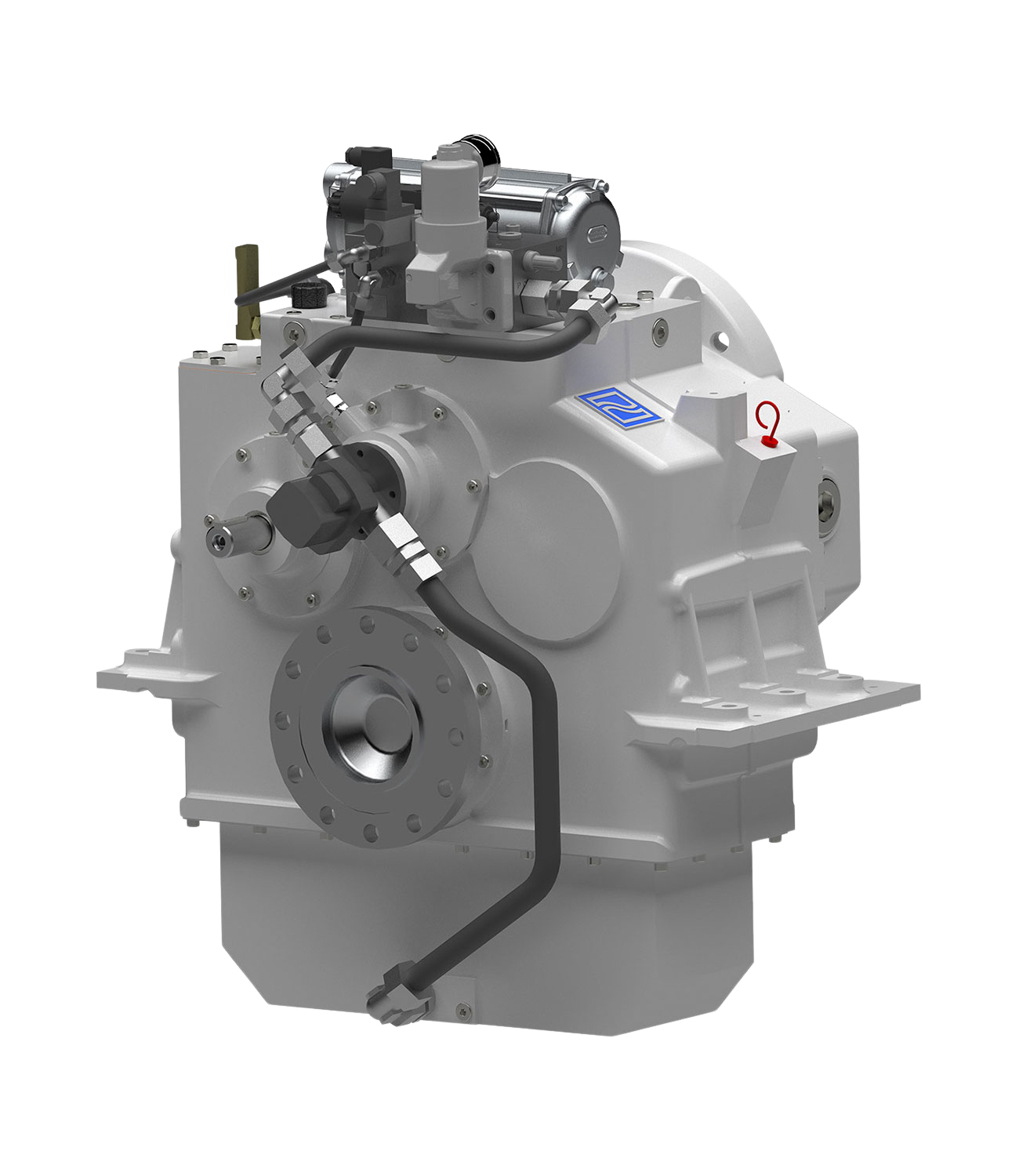

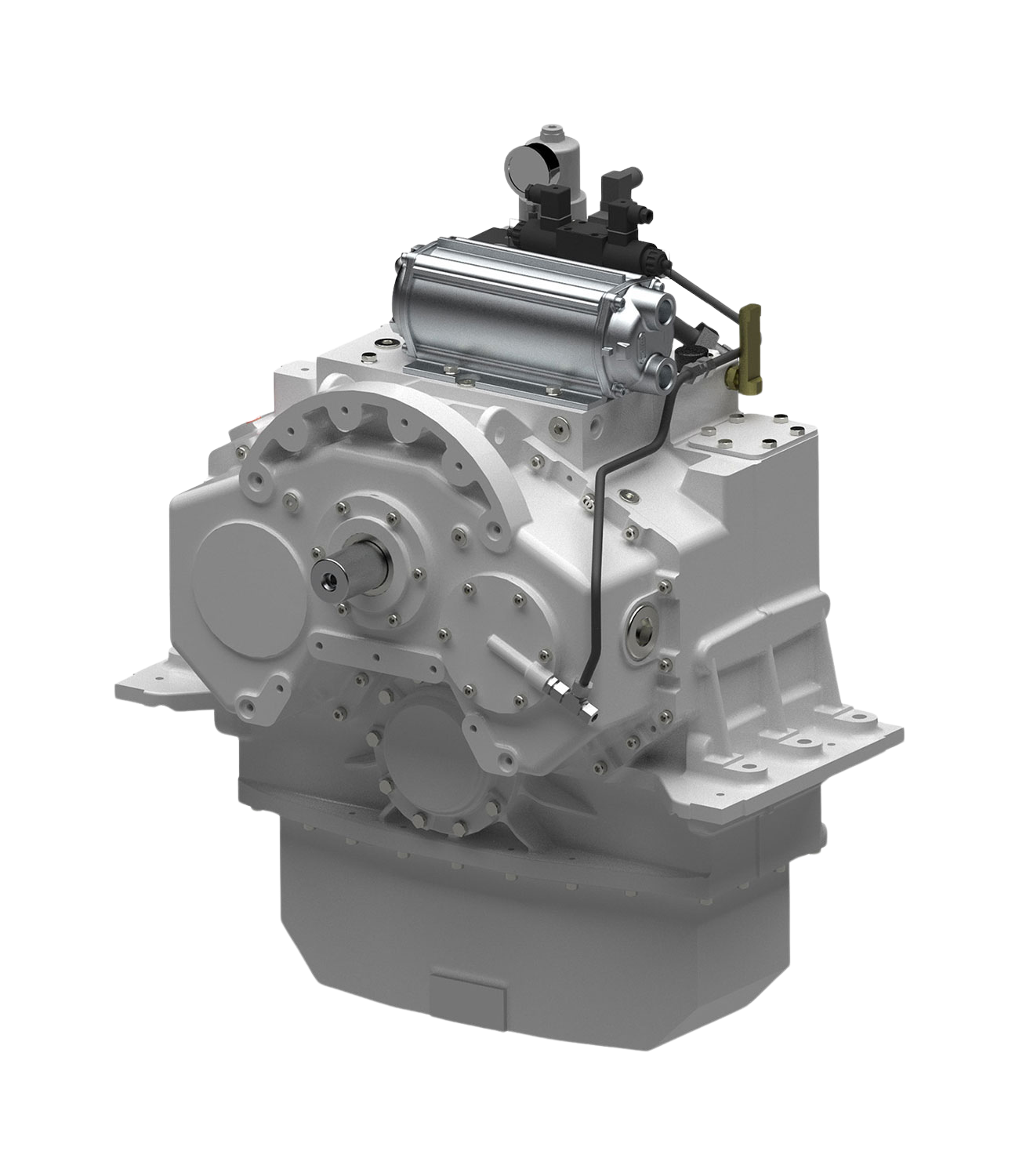

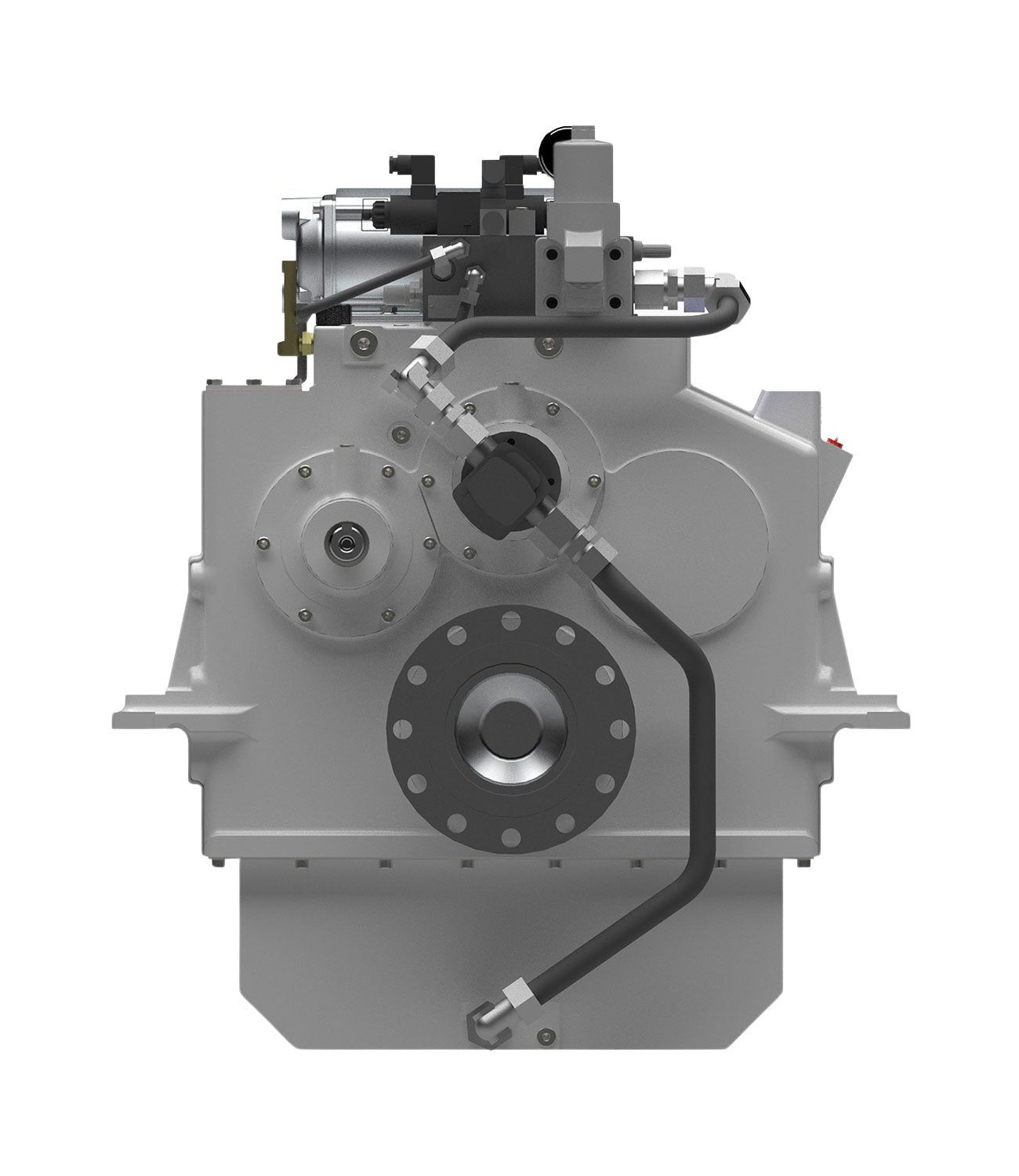

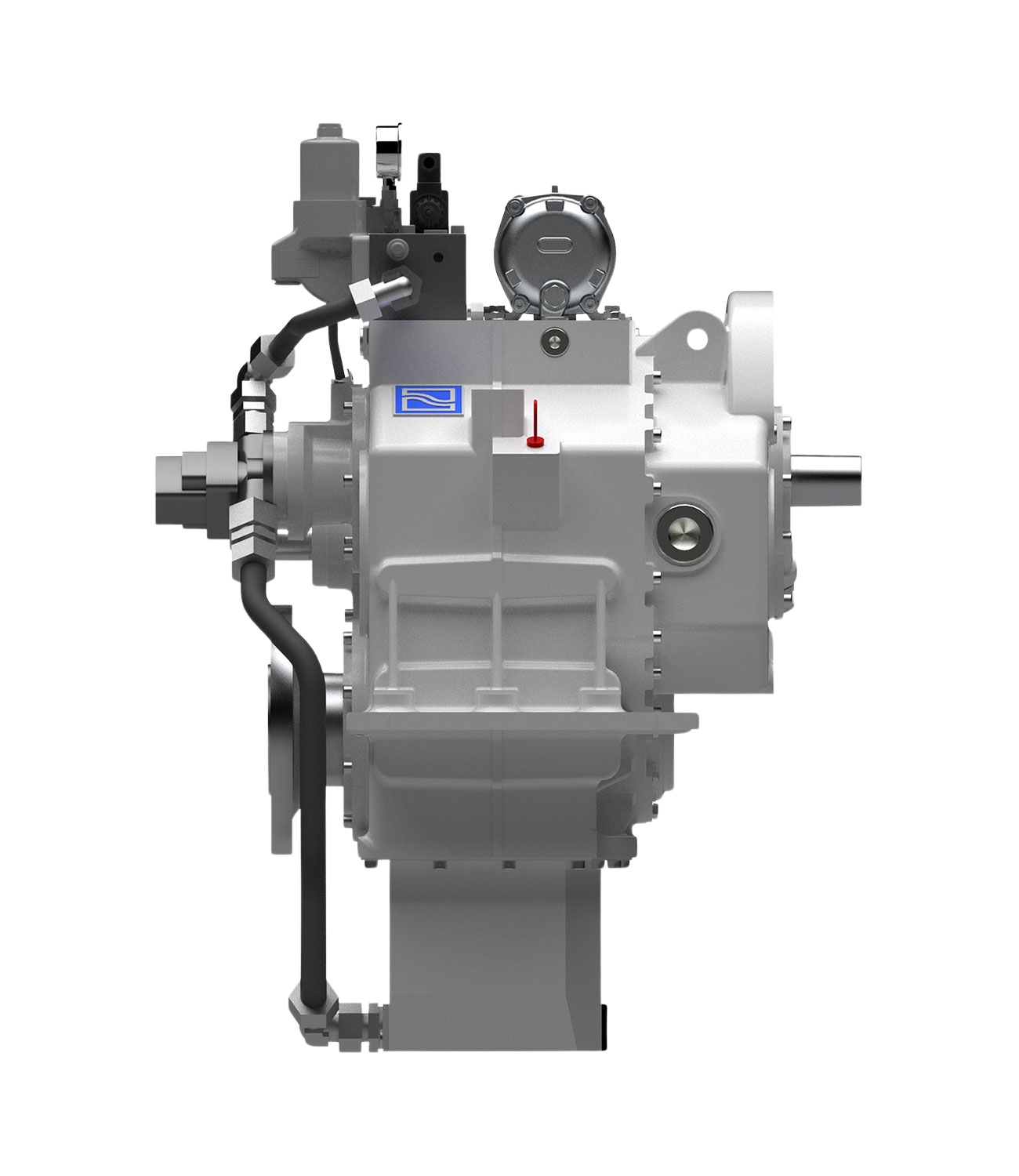

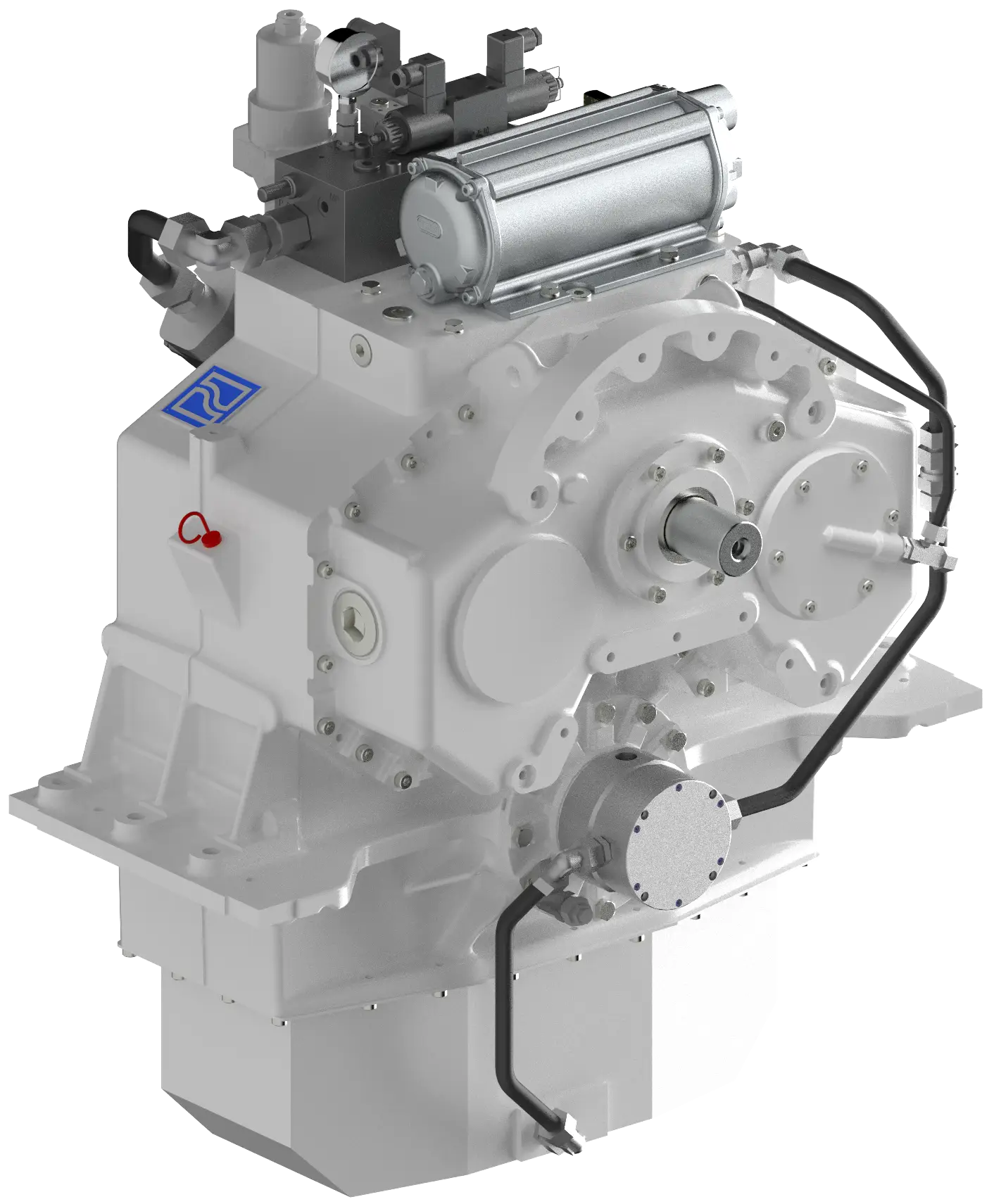

WF Series
WF 350 - 580 | 544 - 1,449 kW
Robust, efficient and sustainable, the REINTJES WF Series fulfills the requirements of modern propulsion concepts with increased input speeds, higher reduction ratios, lower weight, and compact dimensions. Modular PTO/PTI-ready configurations support hybrid drives, batteries, generators, and auxiliary hydraulic loads.
Strong, Light, Small and Fit for Future Propulsion
The WF Series combines compact dimensions, lower weight, higher input speeds, and reduction ratios up to 8:1. Its modular architecture is designed to support efficient marine propulsion today and easy hybrid retrofits tomorrow.
More Power, Less Weight
More power at lower weight and reduced space volume helps lower installation cost while increasing payload and engine-room flexibility.
Higher Reduction Ratios
Increased input speeds and higher reduction ratios help lower propeller speed, improving efficiency and contributing to reduced fuel consumption.
PTO/PTI Ready
Modularized PTO/PTI options support hybrid systems, electric drives, batteries, hydraulic pumps, generators, and future retrofit flexibility.
Hybrid Retrofit Capability
Standardized REINTJES PTO/PTI interfaces allow auxiliary-drive retrofits or full hybrid-system upgrades as vessel propulsion requirements evolve.
Duty Cycles
The WF Series can be applied across a wide range of operating profiles, from heavy-duty commercial service to intermittent pleasure applications.
Continuous Duty
Medium Duty
Light Duty
Pleasure Duty
Specifications
WF 350 - 380 Gearbox Family
| Model | Input Speed | Power Range (kW) | Power Range (BHP) | Weight Dry | Oil | Reduction Ratios |
|---|---|---|---|---|---|---|
| WF 350 | 1600 - 2300 rpm | 544 - 782 | 730 - 1049 | 670 kg | 25 l | 4.190 / 4.737 / 5.056 |
| WF 370 | 1600 - 2300 rpm | 544 - 782 | 730 - 1049 | 730 kg | 25 l | 5.381 / 6.053 / 6.444 |
| WF 380 | 1600 - 2300 rpm | 544 - 782 | 730 - 1049 | 1,180 kg | 28 l | 6.714 / 7.526 / 8.000 |
WF 350 - 380 family from brochure table. Dimensions and dry weights are approximate and may vary by housing, input, or ratio.
| Model | Input Speed | Power Range (kW) | Power Range (BHP) | Weight Dry | Oil | Reduction Ratios |
|---|---|---|---|---|---|---|
| WF 450 | 1600 - 2300 rpm | 768 - 1104 | 1030 - 1480 | 830 kg | 30 l | 4.190 / 4.737 / 5.056 |
| WF 470 | 1600 - 2300 rpm | 768 - 1104 | 1030 - 1480 | 1,100 kg | 30 l | 5.318 / 6.053 / 6.444 |
| WF 480 | 1600 - 2300 rpm | 768 - 1104 | 1030 - 1480 | 1,500 kg | 30 l | 6.714 / 7.526 / 8.000 |
WF 450 - 480 family from brochure table. Nominal input speed for all listed models is 1600 - 2300 rpm.
| Model | Input Speed | Power Range (kW) | Power Range (BHP) | Weight Dry | Oil | Reduction Ratios |
|---|---|---|---|---|---|---|
| WF 550 | 1600 - 2300 rpm | 1008 - 1449 | 1352 - 1943 | 1,200 kg | 40 l | 4.190 / 4.737 / 5.056 |
| WF 570 | 1600 - 2300 rpm | 1008 - 1449 | 1352 - 1943 | 1,450 kg | 40 l | 5.381 / 6.053 / 6.444 |
| WF 580 | 1600 - 2300 rpm | 1008 - 1449 | 1352 - 1943 | 1,850 kg | 50 l | 6.714 / 7.526 / 8.000 |
WF 550 - 580 family from brochure table. Contact Karl Senner for binding project-specific selection and class-related configuration.
Versions
- Grey cast iron single-piece housing
- Helically toothed spur gears, case hardened and flank ground
- Built-in hydraulically operated REINTJES disc clutches with steel/sintered friction surface
- Built-in propeller thrust bearing
- Smooth engagement by optimised pressure curve during shifting
- Full power transmission in both senses of rotation
- Integrated oil sump with common circuit for control and lubrication system
- Oil pump, oil filter and oil cooler accessible from outside
- Integrated seawater-resistant oil cooler for water inlet temperatures up to 32 C° (90 °F)
- Input shaft end with 1:30 taper
- Forged-on output shaft flange
- Paint finish with synthetic resin varnish in RAL 7001 silver grey
- Electric control valve
- Free standing design with rigid foundation and cast mounting feet
- Supervision according to REINTJES standard
- Non-controllable PTO K21 P/N max. 0.06 kW/rpm
- Engine bell housing SAE 1
- Engine bell housing SAE 0
- High flexible elastic coupling
- Mechanical control valve
- Mechanical trailing pump
- Electrical stand-by pump
- Split seal at output shaft
- Foundation bracket bolting interface
- Output counter flange
- Connection points for supervision according to class
- Single screw application
- Oil cooler for 38 C water inlet temperature
- Drawing approval according to classification society
- Type approval
- Full class according to classification society including supervision
Downloads
REINTJES WF Series Brochure
WF 350 - 580 brochure with ratings, reduction ratios, weights, oil capacities, standard equipment, and available options.
Download PDFREINTJES Product Guide 2026
Complete REINTJES marine gearbox product guide covering series families, marine applications, and broader selection references.
Download PDFNeed Help Selecting the Right WF Gearbox?
Our application engineers can help match the right WF model, ratio, and option package to your propulsion concept, vessel profile, and future hybrid requirements.
