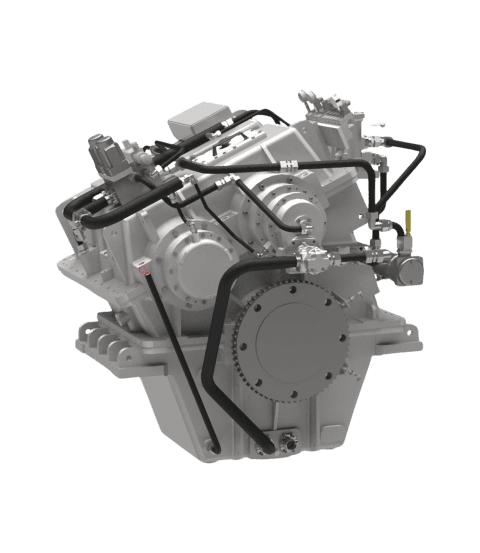

WAF/LAF 2346 – 7760
1,800 – 7,083 kW
High-power reverse-reduction gearboxes for the largest workboat applications — ocean tugs, ATBs, large dredgers, and major commercial vessels. Engineered with welded steel housings for the most demanding continuous-duty propulsion installations.
Built for the Largest Workboat Applications
The WAF/LAF 2346 – 7760 range delivers the torque density needed for ocean-class tugs, ATBs, and major commercial vessels — backed by REINTJES' welded-steel housing construction and 80+ years of heavy-duty marine gearbox experience.
Welded Steel Housing
Welded steel housings deliver maximum strength and shock resistance for the most demanding ocean-class propulsion applications.
Continuous-Duty Reliability
Hydraulically operated disc clutches and oversized roller bearings ensure dependable continuous-duty performance for ocean operations.
Multiple Offset Configurations
Available in horizontal and vertical offset configurations to suit diverse engine room layouts on the largest workboats.
Low Operating Noise
Helical spur gears, case-hardened and tooth-flank ground with precision, deliver smooth, quiet operation across the full power range.
Don't See What You're Looking For?
We specialize in fitting propulsion equipment to your project
Contact Our Sales Team TodayContinuous Duty
The WAF/LAF 2346 – 7760 series is rated for continuous-duty ocean-class propulsion.
Continuous Duty
Other duty cycles for special applications are available on request.
Specifications
WAF/LAF 2346 – 3475 Gearbox
| Model | Weight Dry | Standard Reduction Ratio | kW/rpm |
|---|
kW/rpm values shown are Continuous Duty ratings per the REINTJES Product Guide 2026, listed for each standard reduction ratio. Medium, Light, and Pleasure duty ratings are higher. Additional reduction ratios are available on request. Custom ratios and input speed variations available upon request.
WAF & LAF — Matched to Your Propeller

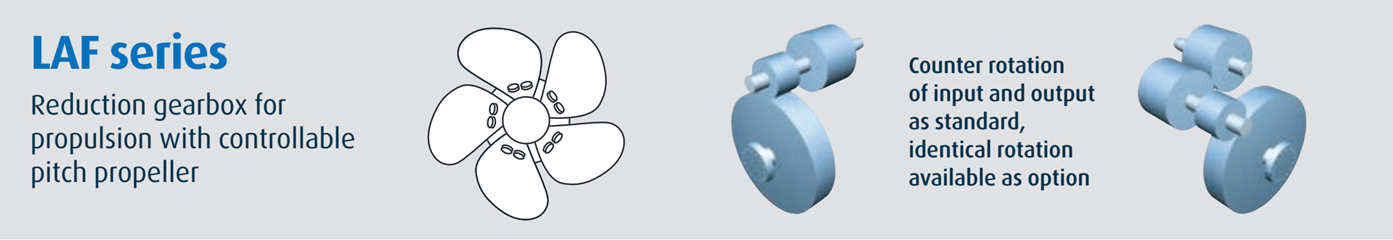

The 2346–7760 range is available as a reverse-reduction WAF gearbox for fixed-pitch propellers or an LAF reduction gearbox for controllable-pitch propellers, designed for heavy-duty propulsion applications.
Versions
- Cast iron housing
- Helical gears, case-hardened and tooth-flank ground
- Built-in, hydraulically actuated disc clutches
- Roller bearings with integrated thrust bearing
- Full power transmission in both output directions
- Integrated oil sump with common oil circuit; oil pump and filter accessible from outside
- Rigid mounting (standard across the full WAF 665 – 1973 range)
- Built-on seawater-resistant heat exchanger with fixed piping
- Maximum cooling water inlet temperature of 32°C (90°F)
- Connection for remote pressure and temperature supervision
- Built-on control valve with electric, pneumatic, or mechanical operation
- Input: free shaft with 1:30 cone
- Output: forged-on flange
- Coated with synthetic resin varnish (RAL 7001 silver-grey)
Where These Gearboxes Go to Work
From tugs and barges to the commercial fishing fleet, REINTJES gearboxes power the hardest-working vessels on the water — engineered for high thrust and continuous, heavy-duty service.
Downloads
WAF/LAF 2346 – 7760 Brochure
WAF/LAF 2346 - 7760 brochure with ratings, reduction ratios, weights, oil capacities, standard equipment, and available options for ocean-class workboat applications.
Download PDFREINTJES Product Guide 2026
Complete REINTJES marine gearbox product guide covering series families, marine applications, and broader selection references.
