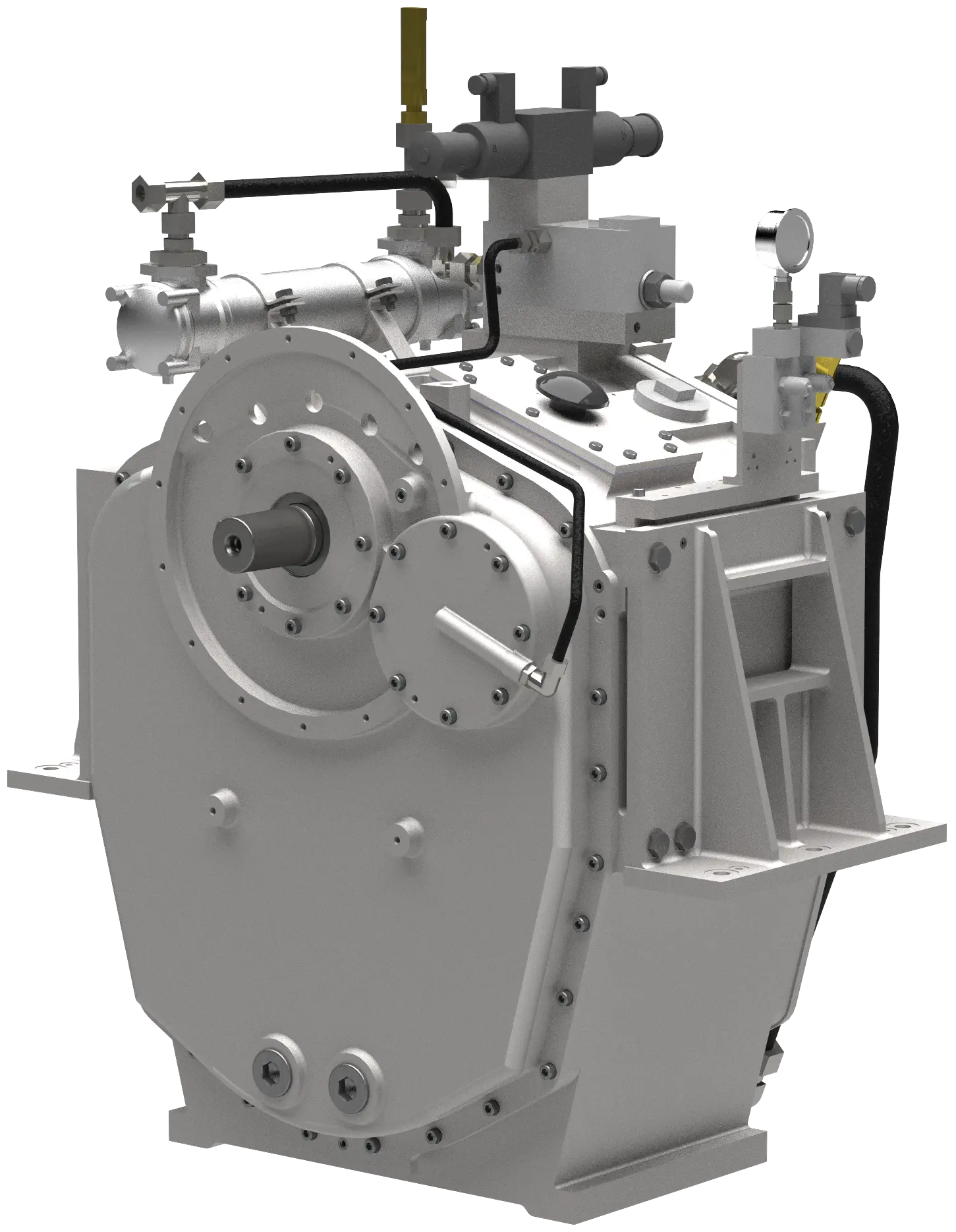

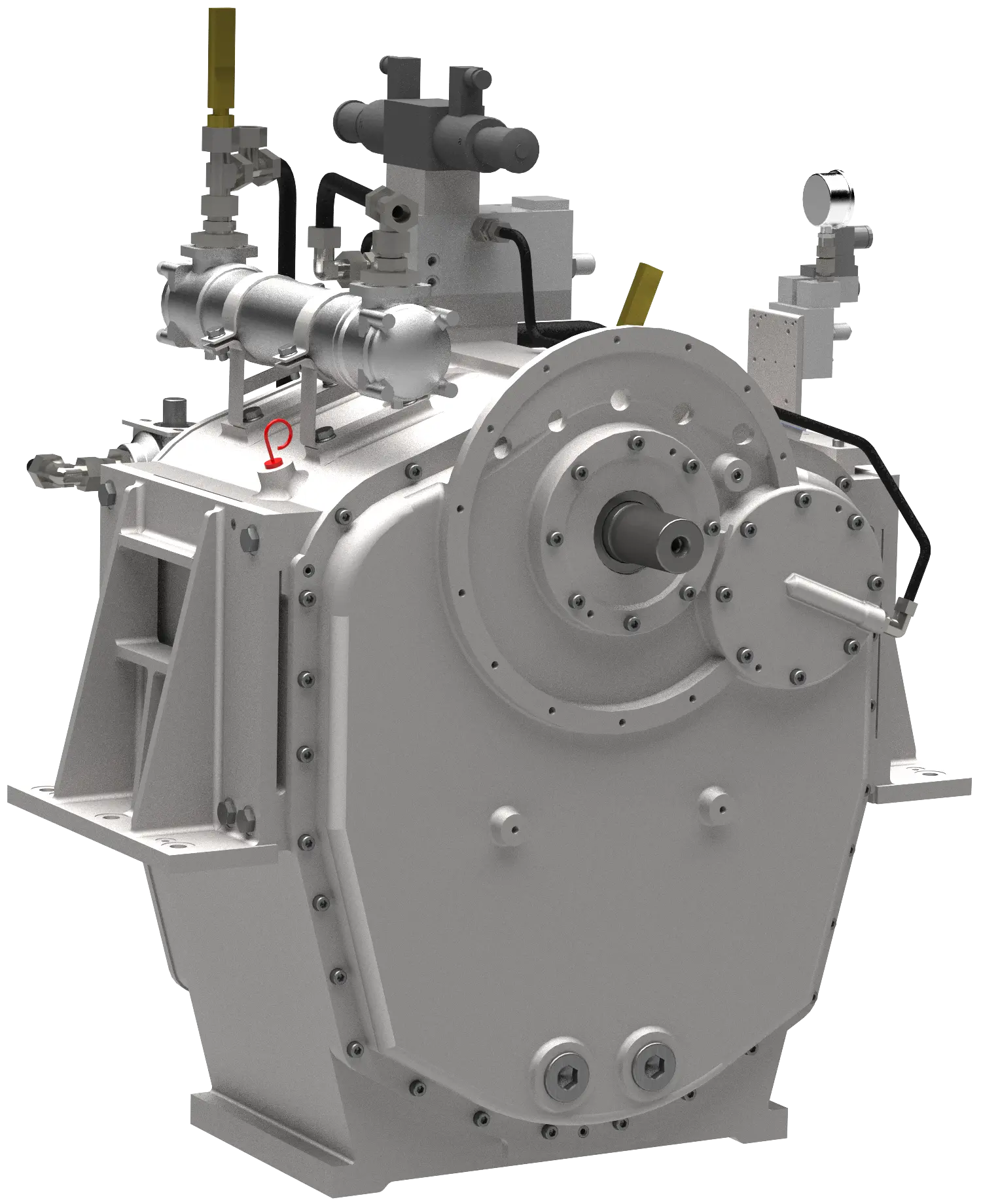

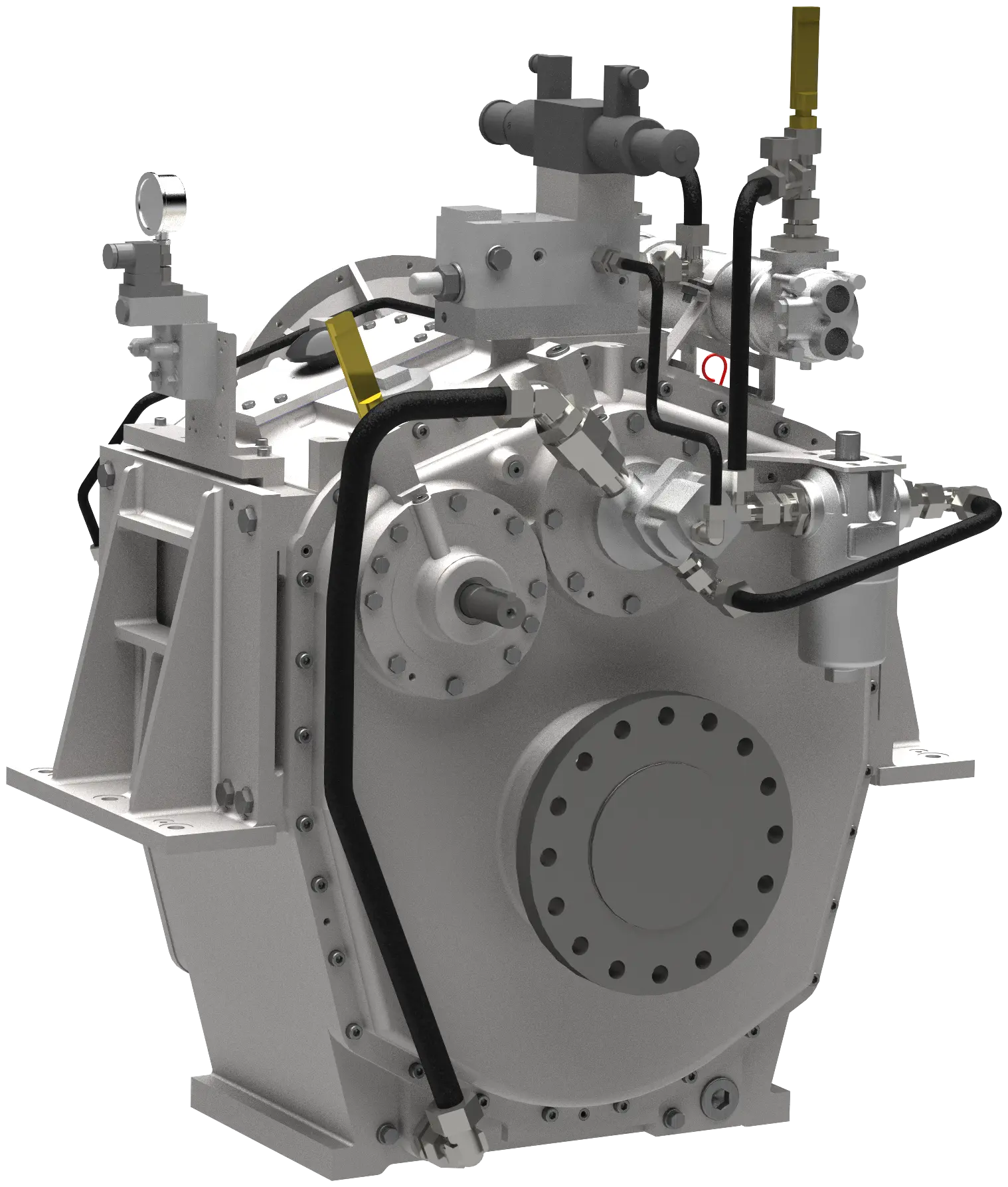

WAF/LAF 164 – 573
250 – 1, 200 kW
Reverse-reduction gearboxes with internal hydraulic multi-disc clutches, specially designed for small and mid-size workboat applications including small tugboats, fishing trawlers, inland towboats, ferries, and special-purpose vessels.
Designed for Small & Mid-Size Workboat Applications
Backed by over 80 years of marine gearbox experience, the WAF/LAF 164 – 573 range delivers uncompromising reliability for small tugs, fishing trawlers, ferries, and inland workboats.
High Operating Reliability
Built-in hydraulically operated disc clutches with steel/sinter friction surfaces ensure dependable performance under continuous heavy-duty operation.
Fast Clutch System
Standard "Fast Clutch" system across the WAF 164 – 573 range provides smooth, precisely controlled engagement under demanding maneuvering.
Compact Dimensions
Available in both vertical and horizontal offset configurations, delivering a compact footprint for easier installation in tight engine room layouts.
Low Operating Noise
Helical spur gears, case-hardened and tooth-flank ground with precision, deliver smooth, quiet operation across the full power range.
Don't See What You're Looking For?
We specialize in fitting propulsion equipment to your project
Contact Our Sales Team TodayDuty Cycle Classification
REINTJES rates the WAF/LAF 164 – 573 series for Continuous and Medium duty operation.
Continuous Duty
Medium Duty
Other duty cycles for special applications are available on request.
Specifications
WAF/LAF 164 – 464 Gearbox
| Model | Weight Dry | Standard Reduction Ratio | kW/rpm |
|---|
kW/rpm values shown are Continuous Duty ratings per the REINTJES Product Guide 2026, listed for each standard reduction ratio. Medium, Light, and Pleasure duty ratings are higher. Additional reduction ratios are available on request. Custom ratios and input speed variations available upon request.
Versions
- Cast iron housing
- Helical gears, case-hardened and tooth-flank ground
- Built-in, hydraulically actuated disc clutches
- Roller bearings with integrated thrust bearing
- "Fast Clutch" system (standard across WAF 164 – 573)
- Full power transmission in both output directions
- Integrated oil sump with common oil circuit; oil pump and filter accessible from outside
- Built-on seawater-resistant heat exchanger with fixed piping
- Maximum cooling water inlet temperature of 32° C (90° F)
- Connection for remote pressure and temperature supervision
- Built-on control valve with electric, pneumatic, or mechanical operation
- Input: free shaft with 1:30 cone
- Output: forged-on flange
- Coated with synthetic resin varnish (RAL 7001 silver-grey)
