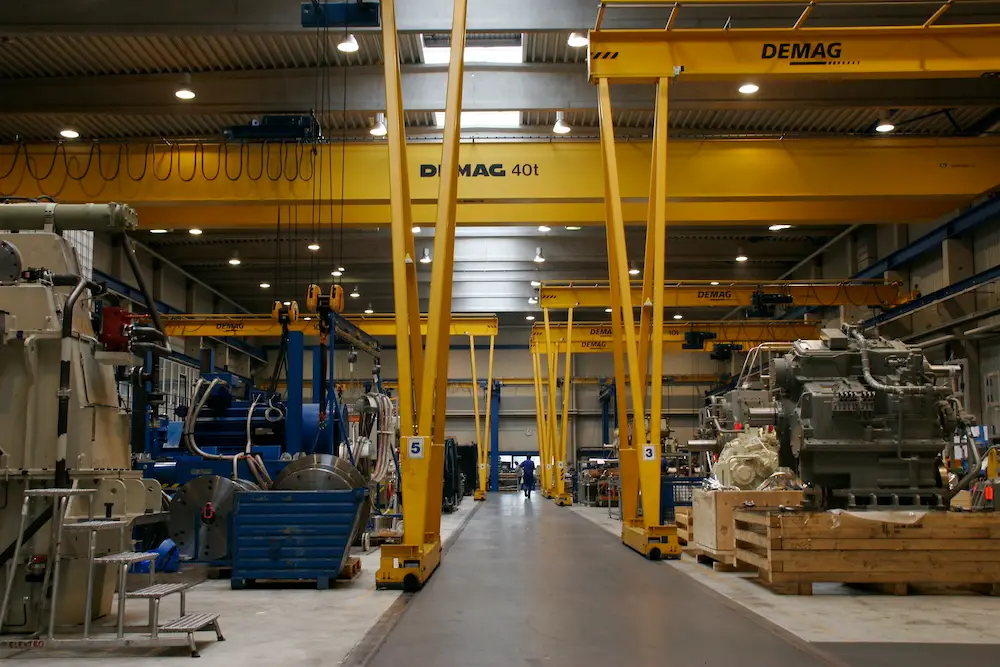

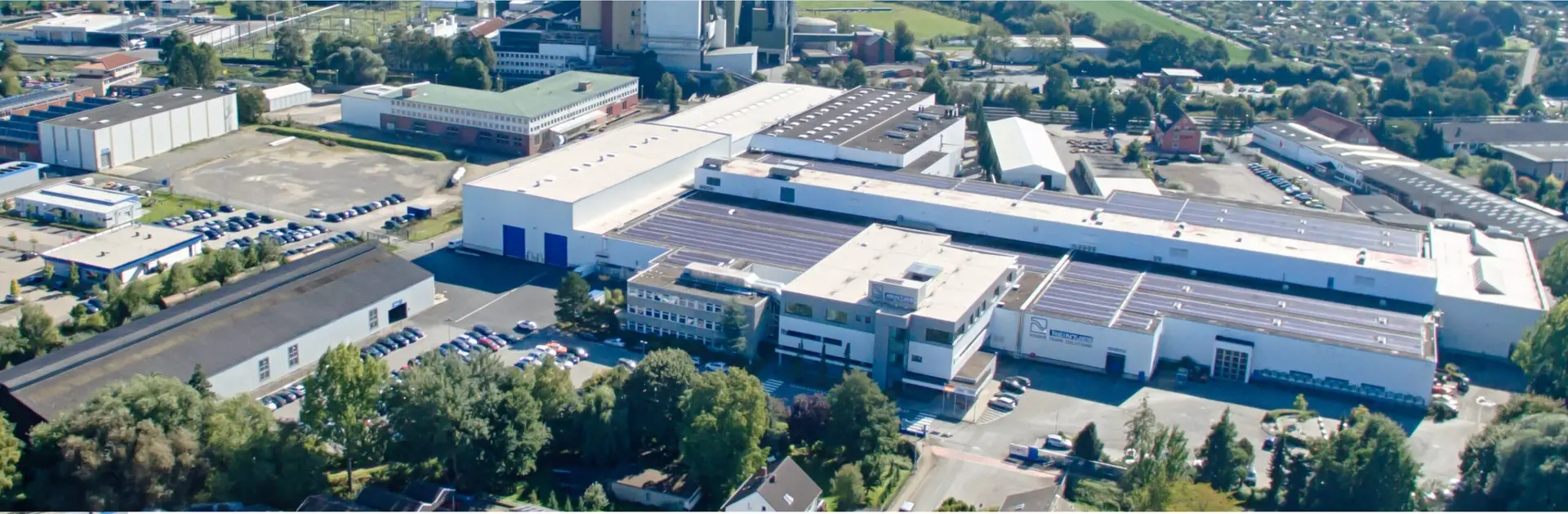

Reintjes Factory

REINTJES GmbH is a globally acting, independent propulsion technology company, manufacturing gearboxes and propulsion systems at its headquarters in Hameln, Germany.

REINTJES continually expands its classic product portfolio of marine gearboxes for main drives with power ratings from 250 to 30,000 kW. Dredging gearboxes as well as complex system solutions such as pod drives and hybrid drives have rounded off the product range. For industrial use REINTJES offers high speed gearboxes.

Internationally, the company is positioned on all major markets through its global sales and service network with subsidiaries and partners.

REINTJES can also design and manufacture custom gearbox solutions. Please contact the Karl Senner Sales Team for more information.

REINTJES GmbH
Eugen-Reintjes-Straße 7
31785 Hameln
Germany
Reintjes Website

NEW PRODUCT!

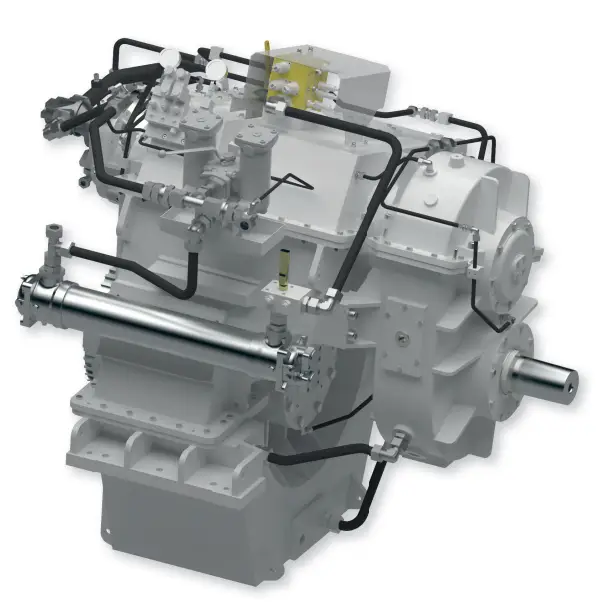

A new gearbox control valve option is now available which offers significantly faster response and seamless gear shifting times.

reintjes gearbox control valve

GEARBOXES FOR WORKBOATS

REINTJES gearboxes of the WAF/LAF, DLG, VA, and SVA/SVAL series have been specially designed for heavy-duty workboat applications such as tugboats, fishing trawlers, inland towboats, ferries, tankers, off-shore vessels, container vessels, and special-purpose ships.

Their outstanding features are optimal efficiency, high reliability, and a long service life.

WAF

Reverse-reduction gearbox with internal hydraulic multi-disc clutches, for use with a fixed-pitch propeller.

LAF

Reduction gearbox with internal hydraulic multi-disc clutch, for use with a controllable-pitch propeller, Z-drive, cyclonal propeller, or light dredging applications.

reintjes WAF 144
WAF/LAF 164 – 573
250 – 1200kW
reintjes waf 863
WAF/LAF – 665 -1973
700 – 3,650kW
Reintjes Gearbox
WAF/LAF 2346 – 7760
700 – 8,500kW

DLG

Dual-input/single-output gearbox, with internal hydraulic multi-disc clutches, for use with a controllable-pitch propeller, Z-drive, cyclonal propeller, or light dredging applications.

DLG 110131
DLG 1113 – 110131
1,400 – 30,000kW

VA

Reduction gearbox (without clutch), for use with a controllable-pitch propeller.

SVA / SVAL

SVA – Reduction gearbox (without clutch), for use with a controllable-pitch propeller. The output shaft and pinion are supported by white metal slide bearings (opposed to roller bearings).

SVAL – Reduction gearbox with internal hydraulic multi-disc clutch, for use with a controllable-pitch propeller. The output shaft and pinion are supported by white metal slide bearings (opposed to roller bearings).

VA 4855
VA 2451  – 4855
3,000 – 20,000kW
SVA 1180
SVA/SVAL 630  – 1400
3,000 – 20,000kW

GEARBOXES FOR FAST VESSELS

REINTJES gearboxes of the WVS/WLS, WVSA, ZWVS, and VLJ series have been specially designed for fast vessels with high operating demands. Gearboxes of these series have a compact, low-weight design, as well as optimal running characteristics and options. These factors make the hydraulically operated gearboxes the ideal propulsion unit, whether for fixed pitch propellers, controllable pitch propellers, or waterjets. These gearboxes were developed for use in fast naval craft, ferries, yachts, patrol vessels, and other vessels with comparably high demands.

WVS

Light-weight reverse-reduction gearbox with internal hydraulic multi-disc clutches, for use with a fixed-pitch propeller or waterjet

WLS

Light-weight reduction gearbox with internal hydraulic multi-disc clutch, for use with a controllable-pitch propeller.

WVS 430
WVS/WLS 234/1 – 430/1
350 – 1,400kW
WVS 1130
WVS/WLS 730/1 – 2240
900 – 5,000kW

WVSA

Down angle, light-weight, reverse-reduction gearbox with internal hydraulic multi-disc clutches, for use with a fixed-pitch propeller.

down angle gearbox
WVSA 240-1540
500 – 4,900kW

ZWVS

Two-speed, light-weight, reverse-reduction gearbox with internal hydraulic multi-disc clutches, for use with a fixed-pitch propeller.

ZWVS 730
ZWVS 440 – 930
350 – 3,082kW

VLJ

Light-weight reduction gearbox with internal hydraulic multi-disc clutch(es), for use with a waterjet.

VLJ 430 – 7541
500 – 13,200kW

GEARBOXES FOR DREDGING

REINTJES gearboxes of the RDG series have been specifically designed for dredging applications to handle high torque loads, to interface directly with the dredge pumps, and even operate under water if needed.

REINTJES gearboxes of the WAF/LAF, and DLG series have been specially designed for heavy duty applications in work boats, but can commonly be configured with a torque-limiting device and placed in a dredging application for an affordable solution.

RDG

Reduction gearbox (without clutch), for use with dredge pump application.

RDGL

Reduction gearbox with internal hydraulic multi-disc clutch, for use with dredge pump application.

Reintjes Gearbox
RDG/RDGL 200 – 800
300 – 10,000kW

HYBRID SYSTEMS

reintjes hybrid systems

REINTJES hybrid systems are ideal for slow-speed operation and enhance the efficiency of your propulsion system as they allow for riding at a slow speed below idle speed. The electric drive ensures smooth running, less noise and low energy consumption and is becoming increasingly more important. The hybrid systems are suitable for fixed pitch propeller applications and available for electric motors from 60 ekW up to 630 ekW. The electric drive can also be used for power generation, or as a booster.

RHS

Ever increasing environmental restrictions like maneuvering operations in the harbor or in green areas with reduced or without emissions require an alternative drive solution. REINTJES developed a new, electrically driven hybrid system solution for gearboxes that provides vessels with an alternative of proceeding at reduced speed.

These hybrid systems enable a much more efficient operation, because they allow for riding at a slow speed below the main engine idle speed. The electric drive is aimed at achieving smooth running, less noise and low energy consumption and will gain still more importance. To enable easy installation, the combined electric motor and generator are already flanged to the gearbox and supplied with a frequency converter.

The hybrid systems are suitable for fixed pitch propeller applications and available for electric motors from 60ekW up to 630e­kW. The complete package comprises the gearbox and a combined electric motor and generator as well as a frequency converter in a one hand solution.

Advantages

  • Quiet and comfortable slow speed also for continuous operation
  • Reduced life cycle costs
  • Reduced emissions
  • Optimum design point for the main engine
  • Higher flexibility for different operating modes
  • Excellent maneuverability in slow speed operation
RHS
60 – 630kWe

FORTJES

Reintjes Fortjes

The FORTJES® propulsion system has been specially developed for use in yachts with engine ratings from 300 to 3,000 kW and offers optimal hydrodynamic properties. Its outstanding maneuverability and space-saving design are further highlights of the pod drive system developed by REINTJES.

FORTJES 1000 – 5000
300 – 2,000kW

INDUSTRIAL GEARBOXES

industrial plant

REINTJES gearboxes of the RDG series have been specifically developed for use in high-speed turbine drives for industrial applications such as power plants. Available input power rating ranges between 1,400 kW and 50,000 kW (additional ratings are available on request).

RTG

High-speed, double helical reduction gearbox for use in industrial application. All shafts are supported by white metal slide bearings.

RTG 200 – 1000
1,400 – 50,000kW

CUSTOM GEARBOX SOLUTIONS

reintjes custom gearbox

Karl Senner, LLC and Reintjes are happy to accommodate customized gearboxes designed for drop-in replacement, custom ratios, or custom offsets to fit within a particular engine room layout. Please contact the Sales Team regarding your inquiry.
